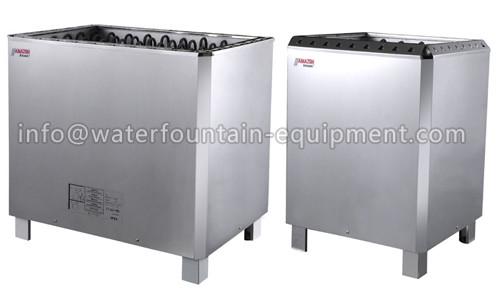

24kw large power ground-mounted sauna heater

Standard series large ground-mounted sauna heaters equips with wall-mounted digital control panel ( CON3 or CON4)

Model:SAM-B10 ,SAM-B12,SAM-B15,SAM-B18,SAM-B21,SAM-B25

The output power covers 10.5 to 24kw, normally requires 380~415V three phases power supply. Stainless steel constructions.

Because of the durable construction, steady performance and easy operation, the Standard SAM-B series sauna heater is widely used in Commercial sauna bath.

Qualified for CE certification and Tests of China Import and Export Commodity Inspection

 details on CON3 out controller

slim digital control panel comes with separate control box and is suitable for the Standard SAM,SAMX,SD series sauna heater.

Function:

Sauna heater turn on/off, Sauna room light control, Chromatherapy LED system control, Ventilation fan control, Temperorily "Pause" sauna heater from Heating without turn off the sauna heater; Segment-heating control; Error diagnose message display, Switch between temperature units (C/F); Working time setting 1~60 minutes or CH non-stop mode,0-12 hours preset time; 5-level LED indication. Temperature setting and display (setting range: 35-100C(95-212F), display range:6-105C(43-221F).

information of CON4 out controller:

CON4 digital control panel is suitable for AM-A,AM-MI,SAM-B series sauna heaters.

Function:

Sauna heater turn on/off, Sauna room light control (up to 100W), ;Error diagnose message display, Switch between temperature units (C/F); Switch between working mode A/B. In working model A, the maximum working time is 12 hours; in working mode B, you could set up to 8 hours preset time and 4 hours working time. Temperature setting and display (setting range: 35-100℃(95-212℉), display range:6-105℃(43-221℉).

TECHNICAL PARAMETER:

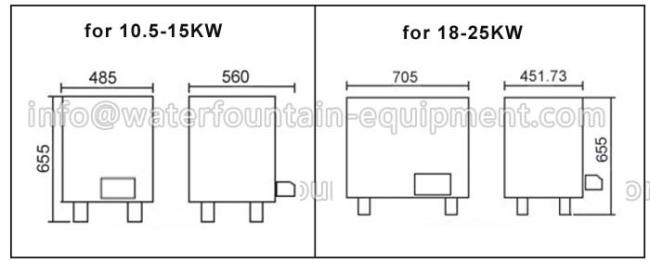

PRODUCT DIMENSION:
