Mini Top View Neon Flex LED with 500lm/M Luminous Flux and 10W/M Power in PVC or Silicone

Features and Benefits:
▪ Top view and vertical bending design and min dia. 80mm bending.
▪ High brightness output up to 500LM/meter.
▪ Seamless connection support.
▪ Single color: 2200-6500K, red, green, blue.
▪ Dimming with PWM,DALI, 0-10V or DMX dimming driver.
▪ Can be cuttable at regular intervals without damage the rest of neon strip.
▪ Optional IP67 DIY Snap or screws connector and IP68 Injection moulded connector.
▪ Single end or dual ends power feed cable for neon LED flex.
▪ Cable entry ways for options:
(1) Direct end entry cable; (2) Side entry cable; (3) Bottom entry cable.
▪ Provides various smart accessories for installation to meet various applications.
▪ Max continuous length per run:
10meters (one end power feed) or 20 meters (Dual ends power feed)
▪ Beam angle:120°.
▪ UV,flame,saltwater(Note: NOT seawater),solvent and dirt resistant.
▪ Rated IK08 and IP68, suitable for both indoor or outdoor applications.
▪ Even can be underwater use and submersible in depth<2 meters.
▪ Operation temperature: -25°C~+50°C.
▪ Standard 3 years warranty (5 years warranty is available).
▪ CE, ROHS certificate.

Technical Specifications:

Injection Moulded Connector (Factory Assembly only) for Mini Neon LED Rope Light:

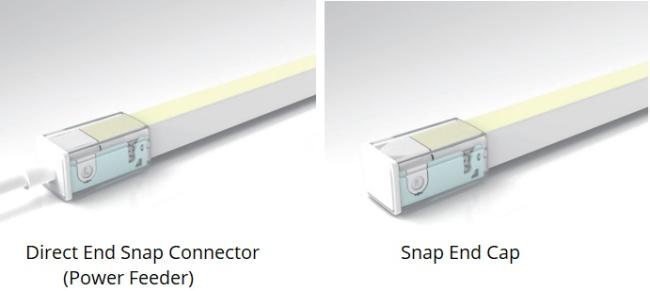

IP67 DIY Snap Type Connectors for Flexible Neon Strip Lights:

IP67 DIY Snap Type Connectors for Flexible Neon Strip Lights:
