IP68 316 Stainless Steel LED Underwater Floodlights 45W 48W 60W 80W Surface Mounted For Pool Lighting
Price:
Negotiable
MOQ:
No MOQ
Delivery Time:
10-25days
Brand:
COMI Lighting
Product Description

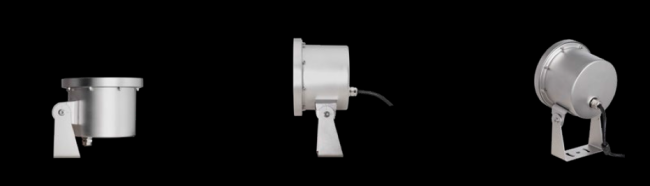

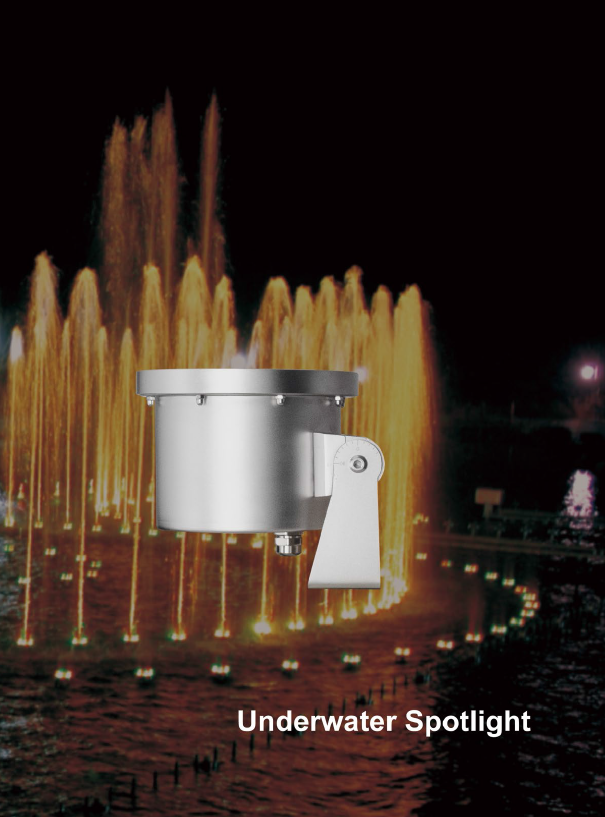

IP68 Wall/ground/or Ceiling Surface Mounted 316 Stainless Steel LED Underwater Floodlights
COMI LIGHTING IP68 SUS316 stainless steel surface mounted LED underwater pool lights are constructed from SUS 316L# stainless steel, making them ideal as underwater spotlights for fountains, pools, ponds, water gardens, and other applications requiring atmospheric or underwater lighting.
Features and Benefits
- Lamp Body Size: Φ230×H150(H364)mm
- Light Source Options:
- SMD LED version: 24pcs×2W single, 3W RGB 3-in-1 LED, or 4W RGBW 4-in-1 LED
- COB LED Version: 1 piece 45W CREE COB LED
- Light Efficiency:
- SMD LEDs + Optical Lens: 60-72 LM/W
- COB LED + Optical Lens: 80-95 LM/W
- COB LED + Reflector: 75-95 LM/W
- Input Voltage: 24V DC operating voltage
- Power Consumption: 45W or 48W (Mono), 60W (RGB 3-in-1), 80W (RGBW 4-in-1)
- Complete SUS 316 L# stainless steel housing and accessories
- Standard non-dimmable, with optional DALI, 1-10V, PWM dimmable or DMX512 controllable
- IP68 waterproof rating, suitable for underwater installation up to 1.5 meters depth
- High-performance silicone for effective heat dissipation and moisture prevention
- Includes 316 stainless steel U-shaped bracket for surface mounting
- Optional 316 stainless steel tripod mounting accessory
- 2-year warranty
Important Installation Note
This IP68 SUS 316 L# stainless steel luminaire must be installed underwater to prevent overheating and potential damage to the light fixture.Material Specifications
| Component | Specification |
|---|---|
| Front Cover & Housing | Molding shaped SUS 316 L# stainless steel housing |
| Gasket | EPDM gasket |
| Window Glass | Step tempered glass, T=10mm |
| Glass Pressure Capacity | Full area = 5012 KGs |
| Lens | Optical lens, efficiency ≥ 85% |
| Cable Gland | IP-68 PG-11 copper with nickel-coated |
| PCB | Excellent heat conductivity aluminum, coefficient of heat conductivity ≥ 2.0w/mk |
| Driver | Constant current output
|
| Application Environment | Water temperature between -20℃ to 40℃, less than 1 meter depth |
| Electrical Connection |
|
| Installation | U-shaped Bracket (for surface mounting on Wall/ground/ceiling) |
| Optional Accessory | SUS 316 stainless Steel Tripod |
| Dimmable or DMX512 |
|
Technical Specifications
| Part Number | Light Source | CRI (White only) | Lens Degree (Θ1/2) | Input Voltage | Power Consumption | Luminance | IK Rate |
|---|---|---|---|---|---|---|---|
| B5BF0150 | 1×50W CREE COB LED | Ra>80 | 15°, 24°, 36°, 60° | 24VDC | 45W | Cool white=4275LM Warm white=3548LM |
10 |
| B5BF2456 | 24×1W Osram or Cree Single color LED | Ra>80 | 10°, 25°, 40°, 60°, 80°, 10×45°, 25×45° | 24VDC | 24W | Cool white=1728LM Warm white=21434LM |
10 |
| B5BF2457 | 24×2W Osram or Cree Single color LED | Ra>80 | 10°, 25°, 40°, 60°, 80°, 10×45°, 25×45° | 24VDC | 48W | Cool white=3456LM Warm white=2868LM |
10 |
| B5BF2418 | 24×2.5W RGB 3-in-1 Full color LED | - | 25°, 40°, 60°, 80°, 10×45°, 25×45° | 24VDC | 60W | 1500LM | 10 |
| B5BF2424 | 24×3.5W RGBW 4-in-1 Full color LED | - | 25°, 40°, 60°, 80°, 10×45°, 25×45° | 24VDC | 80W | 2800LM | 10 |
Specification is subject to change without notice.
