2W IP65 2835 or 5050 Recessed LED Step Lights with Mounting Sleeve 24V or 110-240VAC
Price:
Negotiable
MOQ:
10pcs
Delivery Time:
3~14 Working Days
Brand:
COMI LIGHTING
Product Description
D1G1807 24VDC or 110-240VAC 2835 or 5050SMD LED Outdoor Rating IP65 Recessed LED Step Lights with Plastic Mounting Sleeve and Grey Body Color
Material specifications:
| Housing: | 12# Die-casting aluminum grey powder coated T=60-80µm. Adhesion of ISO class 1/ASTM class 4B. |
| Front cover: | 12# Die-casting aluminum PT877U powder coated T=20-30µm. Adhesion of ISO class 1/ASTM class 4B |
| Cable gland: | IP-67 copper and nickel coated |
| Gasket: | Molding shaped silicone seal |
| LED: | SMD3528 type power LED |
| Driver: | Constant current output |
| Operating temperature: | -20℃~40℃ |
| Power cable: | H05RN-F 3X1.0mm2 L=0.5m |
| Mounting sleeve: | D1G1807: Zinc-coated steel 136# D1I2007,D1I2407:PVC 081# |

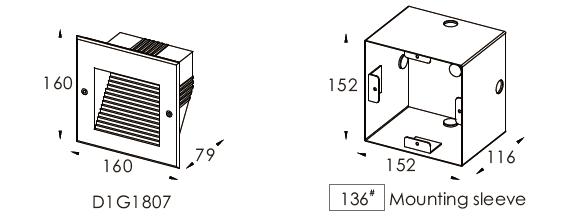

Dimensional Drawing(mm):
General Information:
| Item No. | Light source |
Degree
(Θ 1 / 2 )
|
Input
voltage(V)
|
Typical operating
current (mA)
|
Typical
consumption(w)
|
Typical
luminance (lm)
|
IK rate |
| D1G1807 | 18×SMD3528 | 120 | 110/240VAC |
120V=26
240V=18
|
120V=1.8
240V=2.0
|
Cool white=59
Warm white=48
|
10 |
| D1I2007 | 20×SMD3528 | 120 | 110/240VAC |
120V=38
240V=23
|
120V=2.3
240V=2.5
|
Cool white=66
Warm white=53
|
10 |
| D1I2407 | 20×SMD3528 | 120 | 110/240VAC |
120V=36
240V=28
|
120V=2.4
240V=3.0
|
Cool white=80
Warm white=68
|
10 |
Note:
1. Color options: Warm White, Neutral White, Cool White, Red, Green, Blue and etc;
2. Specification and availability are subjected to change without notice.
