C4A0158 C4A0106 12V / 24V 3W Dimmable RGB LED Underwater Pool Lights Small Size OEM / ODM Available

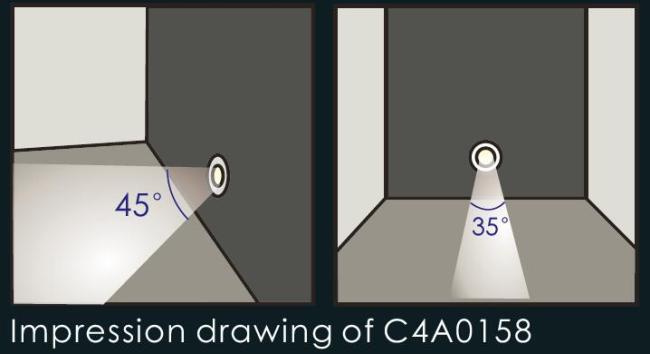

C4A0158, C4A0106(RGB) 12V or 24V 3W RGB Small Size LED Underwater Pool Lights Asymmetrical Light Distribution Totally outdoor Rating IP68 Waterproof
The COMI Lighting C4A-Series IP68 Small Type LED Underwater Pool Spot Light is suitable as underwater spotlight for fountains, pools, ponds, water gardens etc. for atmospheric or underwater lighting. It is dimmable, automatic colour change, DMX 512, DALI, 1-10 V controllable by control units(inquire separately), it is very easy to install by PVC plastic mounting sleeve (included).
Important Notes:
6. Installation Depth: underwater less than 1meter
7. Working Voltage:24VDC or 12VDC is also available
8. PCB: Excellent heat conductivity aluminum, coefficient of heat Conductivity≥2.0w /mk
9. Use the Silcone with good stickiness and thermal effect for reach the purpose of radiating and prevent moisture.
Material specifications:
| Housing | Molding Stainless Steel Housing 316# |
| Waterproof seal | EPDM gasket |
| Glass | Tempered glass. T=7mm |
| Lens | Optical Lens efficiency≥85% |
| Cable gland | IP-68 PG-11 copper and nickel coated |
| Gasket | Glass and housing are silicone sealed |
| LED | Single color LED, Multi RGB color power LED |
| PCB | Excellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk |
| Driver |
Constant current output
Single color LED=1-circuit output
RGB 3in1 LED=3-circuit output
|
| Application environment |
Temperature of water between -20℃~40℃; Installed Less than 1 meter depth in the water. |
| Mounting Sleeve | PVC Mounting Pot |
| Power cable |
H07RN-F 2X1.0mm² L=3m (for Single color)
H07RN-F 4X1.0mm² L=3m(for RGB)
|
Technical Specification:
| Item No. | Light source |
Degree
(Θ 1 / 2 )
|
Input
voltage
(V)
|
Typical operating
current (mA)
|
Typical
consumption
(w)
|
Typical
luminance
(lm)
|
IK rate |
| C4A0158 |
1×3W
Single Color
|
30° | 24VDC | 111 | 2.6 |
Cool white=176
Warm white=140
|
06 |
| C4A0106 |
1×3W
RGB
3-in-1 Color
|
25° | 24VDC |
R=40
G=54
B=56
|
3.5 | 58 | 06 |
Dimensional Drawing(mm):
 |
 |
| Use the Silcone with good stickiness and thermal effect for reach the purpose of radiating and prevent moisture. |
Water must be allowed to go inside and outside sleeve freely without leaking from the other side. |
