B5W0916 B5W0918 24VDC 28.6W 9PCS * 2W or 3W RGB 3 in 1 LED Underwater Spot Light with Tripod
B5W0916, B5W0918(RGB) 24VDC 9 * 2W CRI 80 IP68 316 Stainless Steel Underwater LED Fountain Spot Lights
Features and Benefits:
1. 9pcs 2W Osram or Cree LED as light source.
2. The perfect combination of SUS 316 stainless steel Bracket and Tripod enables the lamp can be 360degree adjustable in horizontal and vertical direction.
3. The application of gear enables fixture to fit bracket perfectly.
4. The fitting made of stainless steel with slow heat conducting must be installed underwater, and less than 1meter in depth.
5. Dimming options include 0-10 V , PWM protocols, DALI and etc.
6. Suitable as underwater Flood spot light for fountains, pools, ponds, water gardens etc. for atmospheric or underwater lighting.
Material Specification:
| Front cover&Housing | Molding shaped sus 316# stainless steel |
| Tripod and Bracket | Molding shaped sus 316# stainless steel |
| Glass | Clear tempered glass. T=5mm |
| Optics Lens | One-unit optical lens, efficiency≥85% |
| Cable gland | IP-68 PG-11 copper and nickel coated |
| LED | TO type power LED |
| PCB | Excellent heat conductivity aluminum, coefficient of heat Conductivity≥3.0w/mk |
| Driver | Constant current output |
| Application environment | Temperature of water between -20℃~40℃ less than 1 meter depth. |
| Power cable |
H07RN-F 2X1.0mm² L=3m (for Single color) H07RN-F 4X0.75mm² L=3m (for RGB) |
Technical Information:
| Item No. | Light Source | Lens |
Beam Angle |
Input Voltage (V) |
Typical Operating Current(mA) |
Typical Power (W) |
Typical Luminance (lm) |
IK Rate |
| B5W0916 |
9×2W |
B32 | 30° | 24VDC | 882 | 21 | Cool white=820 Warm white=750 |
08 |
| B5W0918 |
9×3W 3-in-1 RGB |
B32 | 25° | 24VDC | R=284 G=461 B=451 |
28.6 |
726 |
08 |
Applications:

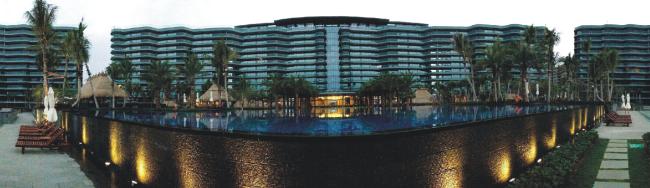

LED Underwater light is the perfect solution for decorative illumination water landscapes and illumination. With an IP68 waterproof grade, it is perfect for Swimming pool, ponds, fountain, aquariums, recreational facilities, decoration underwater, park lake, water stage and other outdoor place for atmosphere decoration.
Warning:
This high-power LED housing is all stainless steel, must be installed underwater
staying cold to prevent from burning too hot.
Dimensional Drawing(Unit:mm)
Symmetrical Lens Symmetrical Lens Asymmetrical Lens
