24V or 110~240V Smooth Light Sqaure LED Underground Back Light 1.2W 1.8W
D2CDS0614, D2CDS0615(RGB) 24V or 110~240V 1.2W 1.8W Surface Light SMD LED Inground Lamp Square Front Cover and Outdoor Rated IP67, COMI Lighting (HK) Brand
Features and Benefits:
1. White print or frosted glass enables the lamp output surface soft beam.
2. 116mm round shape, SUS 316 Stainless steel front cover,Round shape or square shape for options.
3. 2578KGs glass pressure capacity and IK09
4. SMD 2835 or 5050 RGB 3-in-1 LED as its light source
5. Dimming options by: 0-10V, DALI, PWM and etc;
6. Lamp body is made of die cast aluminum helps fast heat dissiption
7. Easy to install by PVC mounting sleeve
8. Low power consumption 1.2W or 1.8W only, energy and cost saving
9. IP67 rating desgin suitable for many outdoor back lighting or surface smooth lighting application.
Material Specification:
| Housing: | 12# Die-casting grey powder coated aluminum . T=60-80µm.Adhesion of ISO class 1/ASTM class 4B |
| Front ring: | Stainless steel SUS 316# |
| Lens: | Milky PC shade/White Print or Frosted |
| Glass: | Step tempered glass. T=8mm |
| Loading capacity: | Exert force area of Φ10=660kgs Φ30=1840kgs |
| Cable gland: | IP-68 PG-9 PVC |
| Gasket: | Molding shaped silicone seal |
| Operating temperature: | -20℃~40℃ |
| Power cable: | H05RN-F 2X1.0mm² L=0.5m (low voltage) H05RN-F 3X0.75mm² L=0.5m (high voltage) H05RN-F 4X0.75mm² L=0.5m (for RGB) |
| Mounting sleeve: | PVC |
Technical Information:
| Item No. | Light source |

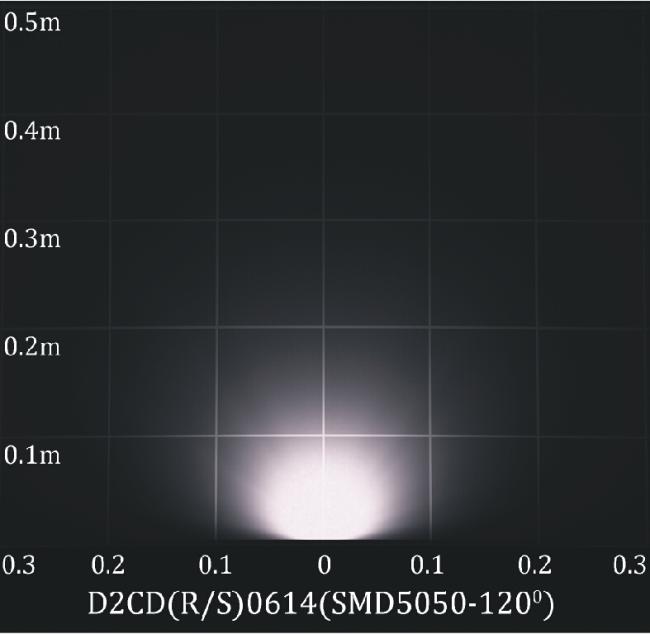

Lens Beam
Angle
(º)
|
Input
voltage
(V)
|
Typical operating
current
(mA)
|
Typical
consumption
(w)
|
Typical Luminance (lm) |
IK rate |
|
D2CDS0614
|
6×SMD5050 Or SMD2835 |
120 |
24VDC Or
120 /240
|
24V=51
120V=14 240V=9 |
24V=1.2
120V=1.2 240V=1.4 |
Cool white=11 Warm white=9.5 |
09 |
| D2CDS0615 |
6×SMD5050 3-in-1 RGB |
120 |
24VDC
|
R=17
G=17 B=17 |
R=0.4 G=0.4 B=0.4 |
R=1.2 G=1.9 B=0.5 |
09 |
Note:
1. Single color: Warm White,Neutral White, Cool White,Red, Green, Blue and etc;
2. Specification and availability are subjected to change without notice.
Dimensional Drawing (Units:mm):

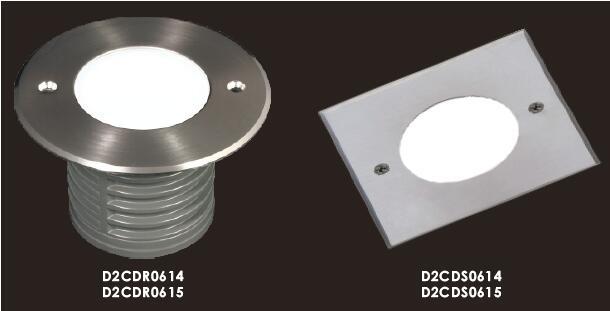

Family Products:
| Item No. | Light source |
Lens Beam
Angle(º)
|
Input
voltage(V)
|
Typical operating
current (mA)
|
Typical
consumption(w)
|
Typical Luminance (lm) |
IK rate |
|
D2CDR0614
D2CDS0614
|
6×SMD5050 | 120 |
24VDC Or
120 /240
|
24V=51
120V=14 240V=9 |
24V=1.2
120V=1.2 240V=1.4 |
Cool white=11 Warm white=9.5 |
09 |
|
D2CDR0615 D2CDS0615 |
6×SMD5050 3-in-1 RGB |
120 |
24VDC
|
R=17
G=17 B=17 |
R=0.4 G=0.4 B=0.4 |
R=1.2 G=1.9 B=0.5 |
09 |
Note:
1. Single color: Warm White,Neutral White, Cool White,Red, Green, Blue and etc;
2. Specification and availability are subjected to change without notice.
