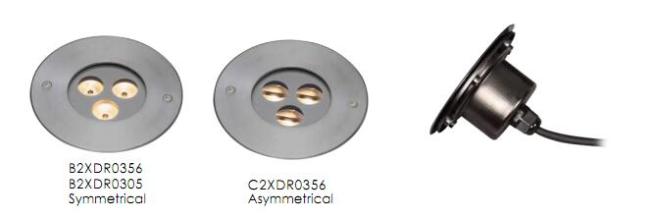

3 * 1 W LED Inground Light High humidity , Acid , Alkali Site Dedicated Outdoor Rated IP67
B2XDR0356, B2XDR0305(RGB) 24VDC or 110 - 240VAC 3 * 1 W LED Symmetrical High humidity, Acid, Alkali Site Dedicated Inground Lights Outdoor Rated IP67
Features and Benefits:
1. Molding shaped SUS 316L housing&front cover, High humidity, Acid, Alkali Site Dedicated Inground Lights;
2. Symmetrical Light Distribution
3.
Material Specificaiton:
Front cover&Housing: Molding shaped sus 316L stainless steel
Gasket: EPDM gasket
Glass: Step tempered glass. T=8mm
Glass pressure capacity: Full area=2612kgs
Cable gland: IP-68 PG-11 PVC
Waterproof seal: Molding shaped silicone seal
PCB: Excellent heat conductivity aluminum,coefficient of Heat Conductivity≥2.0w/mk
Driver: Constant current output ,Single color LED=1-circuit output
Application environment: Between -20℃~40℃
Power cable: H05RN-F 2X1.0mm2 L=0.5m (for single color)
H05RN-F 4X0.75mm2 L=0.5m (for RGB)

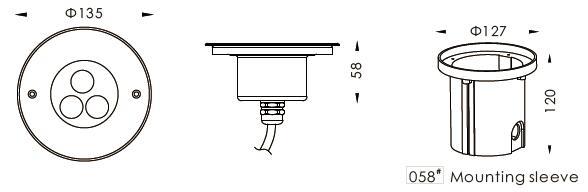

Mounting sleeve: PVC 058#
Technical Information:
| Item No. |
Light source |

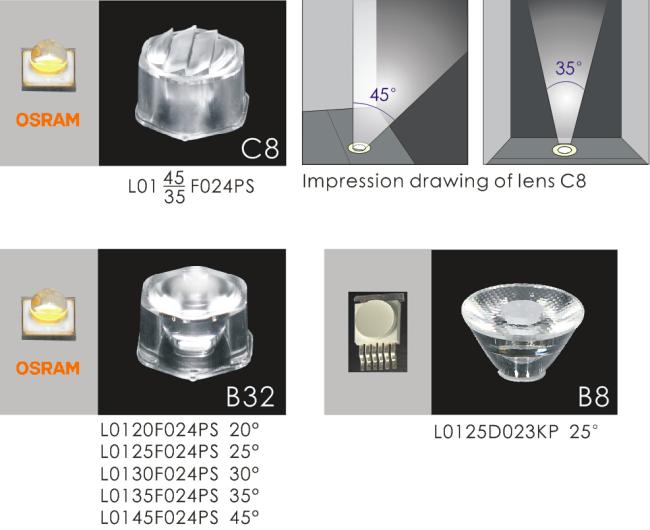

Lens |
Degree
(Θ 1 / 2 )
|
Input
voltage
(V)
|
Typical
operating
current (mA)
|
Typical
consumption
(w)
|
Typical
luminance
(lm)
|
IK rate |
| B2XDR0356 | 3×1W | B32 | 20° |
24VDC |
150 | 3.6 | Cool white=322 Warm white=250 |
08 |
| B2XDR0305 | 3×1.5W RGB 3in1 Full color |
B8 | 25° |
24VDC |
R=50 G=72 B=72 |
4.6 | 118 | 08 |
Family Products:
| Item No. |
Light source |
Lens |
Degree
(Θ 1 / 2 )
|
Input
voltage
(V)
|
Typical
operating
current (mA)
|
Typical
consumption
(w)
|
Typical
luminance
(lm)
|
IK rate |
| B2XDR0356 | 3×1W | B32 | 20° | 24VDC | 150 | 3.6 | Cool white=322 Warm white=250 |
08 |
| B2XDR0305 | 3×1.5W RGB 3in1 Full color |
B8 | 25° | 24VDC | R=50 G=72 B=72 |
4.6 | 118 | 08 |
| C2XDR0356 | 3×1W | C8 | 45°|45° | 24VDC | 150 | 3.6 | Cool white=322 Warm white=250 |
08 |
