30W 90 Degree Wide Beam Outdoor LED Flood Lights with Bracket OEM / ODM Available

Price Negotiable

Price: Negotiable

MOQ: 10pcs

Delivery Time: 3~16days

Brand: COMI LIGHTING

Product Description

CL-TG003-030W 110 - 240VAC 30W Wide Beam IP65 LED Flood Lights 2940LM Output >0.9 Power Factor

Features and Benefits:

1. Utilizes high CRI>70 or >80 and high lumen output 100LM/W integrated chip LED as its light source;

2. Raindrop surface reflector enable the output light at Multi angle refraction, this helps to maximize the light effect and minimize dark spot, and makes the luminaire with more even light output.

3. The heat sink is made of extruded aluminum and oxidizing treatment;

4. Uses high power factor >0.9 No flicker constant current LED driver for the LED floodlight;

5. It is very easy to install by 180degree angle adjustable bracket;

6. Not contain mercury, lead and other harmful substances, no infrared and ultraviolet rays.

7. 90 degree wide beam angle;

8. IP65 Waterproof.

Specification:

Part Number	CL-TG003-030W
Rating Power(W)	30W
Power Consumption	30±3W
LED Driver Brand	Mean Well
Input Voltage	100-240VAC
Working Current	DC 900mA
LED Source	Epistar 35 mil /BRIDGELUX 45 mil (Integrated Chip LED)
Flux(lm)	Warm White	Natural White	Cool White
	2100-2400lm	2300-2600lm	2550-3000lm
CRI(Ra)	≥70	≥70	≥70
Color Temperature	2700~3300K	4000~4500K	6500~7000K
Power Factor	≥0.9
Light Effect	≥0.9
Beam Angle	90Degree
IP Rating	IP65
Working Temperature & Relative humidity	-35℃~60℃~/ R.H.≤85%
Material	Aluminum +Tempered glass
Tj	<65℃±10%(Ta=25℃)
LED Lifespan on Average	50000hours
Wire lead	1.0mm² three core wires, L=0.5Meter . (Brown wire-L,Blue wire-N,Yellow/Green-G)
Product Size	L134XW148XH202mm
Net Weight	2.5KGs/piece

Note:

1. Color options: Warm White, Neutral White, Cool White;

2. Specification and availability are subjected to change without notice.

3. For more detail specification in PDF, please contact us separately.

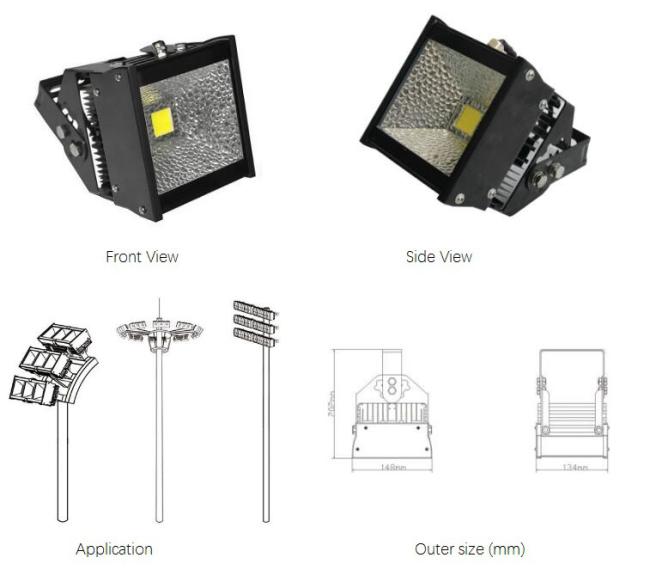

Exploded View:

Note:

The above exploded view is for 90W (3pcs 30W LEDs) only.

Comparison:

COMI LIGHTING'S FLoodlight (takes 30W as example)		Other brand's Floodlight

Raindrop surface reflector makes the reflector with much refractive points, this feature allows the flood lights can be maximized the light effect and minimized the dark spot.		Smooth "mirror" surface with less refractive points. Easy to make the light with “double image” when there is objects under the light.


180degree adjustable bracket and special structure bracket, enables it is easy to install and safe to use.		Simple bracket, the support ability will be risk to loosen and makes the support angle shift.


COMI Lighting's 30W LED Flood light with power factor >0.9 and the watt of the lamp reach 30W.		Power factor is very low!
