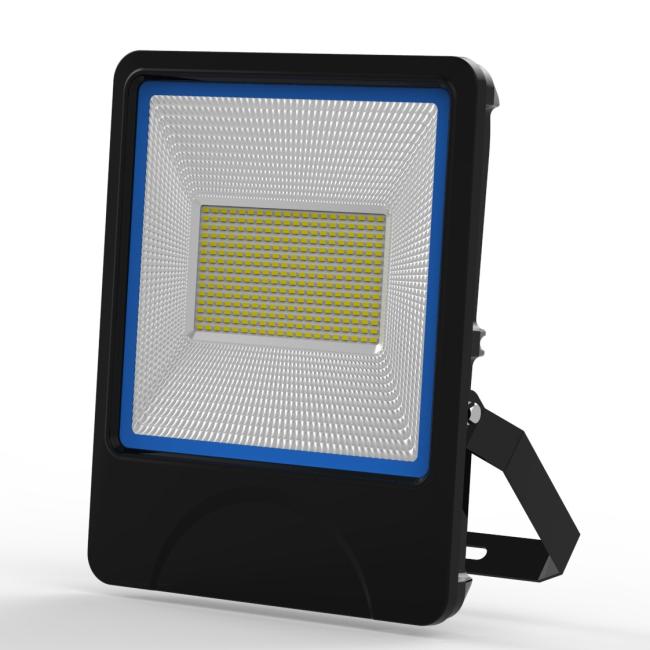

16500LM 150 Watt High Power Led Floodlight for Industrial Lighting , High Brightness
CL-TG005-150W High Powered Waterproof 16500LM 150 Watt LED Flood Lights CRI＞80 PF＞0.95, IP66 Waterproof LED Flood Lamps for Industrial Lighting
Features:
1. This model adopts sleek design, stylish and classic.
2. The LED floodlight voltage range is AC85-265V, which can meet the wider voltage.
3. The beam angle of 120 degrees wide provides a uniform and bright illumination in a wide range.
4. Vertical or horizontal installation, adjustable bracket allows to different angles.
5. IP66, waterproof and dustproof process are good, toughened transparent glass cover, full waterproof, resistant to various environmental factors.
6. Widely be used for garden,workshop,highway toll stations,plaza,city overpass, basketball Court, residential area and industrial Lighting.
Specifications:
|
Part Number |
CL-TG005-150W |
Input Voltage |
AC85-265V |
|
Power |
150W |
Beam Angle |
120° |
|
Luminous Flux |
16500LM |
IP Rating |
IP66 |
|
LED |
300pcs Epistar SMD5730 |
Light Effect |
100LM/W(±5%) |
|
Power Factor |
>0.95 |
Warranty |
3 years |
|
CCT |
3000K-6500K |
CRI |
>80 |
|
Certification |
TUV CE/ RoHS/FCC/ SAA/ UL |
Driver |
Isolation Constant Current Dirver |
|
Lifespan |
50000Hrs |
Product Size |
385*305*58MM |
Series Items:
| No | Part Number | Input Voltage | Power | Lumen | PF | LED Light Source | Light Effect | CCT |
|---|---|---|---|---|---|---|---|---|
| 1 | CL-TG005-10W | 85-265VAC | 10W | 1100LM | 0.55 | 20pcs Epistar SMD5730 | 100LM/W(±5%) | >80 |
| 2 | CL-TG005-20W | 85-265VAC | 20W | 2200LM | 0.55 | 40pcs Epistar SMD5730 | 100LM/W(±5%) | >80 |
| 3 | CL-TG005-30W | 85-265VAC | 30W | 3300LM | 0.95 | 60pcs Epistar SMD5730 | 100LM/W(±5%) | >80 |
| 4 | CL-TG005-50W | 85-265VAC | 50W | 5500LM | 0.95 | 100pcs Epistar SMD5730 | 100LM/W(±5%) | >80 |
| 5 | CL-TG005-100W | 85-265VAC | 100W | 11000LM | 0.95 | 200pcs Epistar SMD5730 | 100LM/W(±5%) | >80 |
| 6 | CL-TG005-150W | 85-265VAC | 150W | 16500LM | 0.95 | 300pcs Epistar SMD5730 | 100LM/W(±5%) | >80 |
Note:
1. Color options: Warm White(2900-3200K), Neutral White(4000-4500K), Cool White(6000-6500K).
2. Specification and availability are subjected to change without notice.
2. For more detail specification in PDF, please contact us separately.
Product Details:
Test Reports:
Packing Details:
N.W: 4.6KGs/piece G.W.: 4pcs/20KGs/Canton
Outer box(Carton): L350*W320*H450mm
