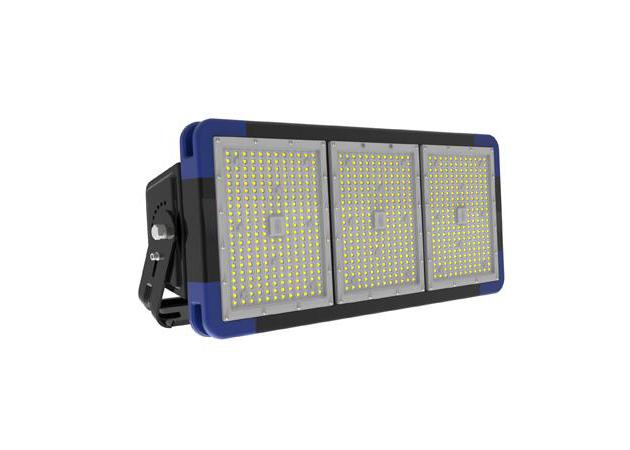

Waterproof IP66 540 Watt LED Stadium Light 75600LM AC85-277V 5 Years Warranty
CL-SL-540W IP66 Waterproof 5 Year Warranty 540W LED Stadium Light, CRI＞80 PF＞0.95 75600LM 540Watt LED Floodlight for Football Field
Features:
1. It is the wide range of input voltage range, which can be used normally from 85V to 277V.
2. Adjustable mounting bracket and directly illuminated where needed.
3. IP67 protection grade, high resistance to water and dust.
4. The installation is convenient, and the whole structure is waterproof design to ensure safe and reliable.
5. No lead, no mercury, no environmental pollution.
6. Mounting height: 15 metres to 30meters
Specifications:
|
Part Number |
CL-SL-540W |
Input Voltage |
AC85-277V |
|
Power |
540W |
Beam Angle |
10°/25°/45°/60°/90° |
|
Luminous Flux |
75600LM |
IP Rating |
IP66 |
|
LED |
840pcs 3030 |
Light Effect |
140LM/W(±5%) |
|
Power Factor |
>0.95 |
Warranty |
5 years |
|
CCT |
3000K-6500K |
CRI |
>80 |
|
Driver |
Meanwell Driver |
Lifespan |
50000Hrs |
|
Certification |
ETL/TUV/CB/CE/ RoHS/ SAA |
Product Size |

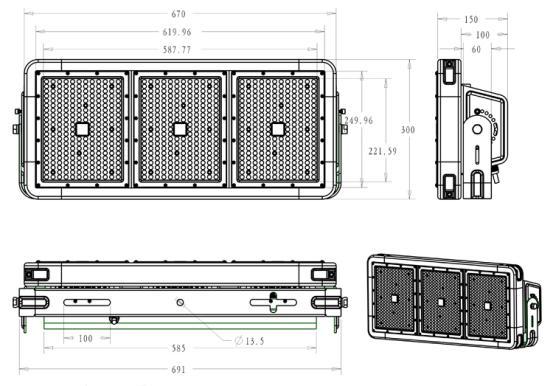

670*300*150MM |
Series Items:
| No | Part Number | LED Light Source | Input Voltage | Power | Lumen | Driver | Warranty |
|---|---|---|---|---|---|---|---|
| 1 | CL-SL-200W | 280pcs 3030 | 85-277VAC | 200W | 27000LM | Sosen/ Meanwell | 5 years |
| 2 | CL-SL-360W | 560pcs 3030 | 85-277VAC | 360W | 50400LM | Sosen/ Meanwell | 5 years |
| 3 | CL-SL-540W | 840pcs 3030 | 85-277VAC | 540W | 75600LM | Sosen/ Meanwell | 5 years |
| 4 | CL-SL-720W | 1120pcs 3030 | 85-277VAC | 720W | 100800LM | Sosen/ Meanwell | 5 years |
| 5 | CL-SL-1080W | 1680pcs 3030 | 85-277VAC | 1080W | 151200LM | Sosen/ Meanwell | 5 years |
| 6 | CL-SL-1440W | 2240pcs 3030 | 85-277VAC | 1440W | 201600LM | Sosen/ Meanwell | 5 years |
Note:
1. Color options: Warm White(3000-3500K), Neutral White(4500K), Cool White(6000-6500K).
2. Specification and availability are subjected to change without notice.
2. For more detail specification in PDF, please contact us separately.
Product Details:
Packing Details:
N.W: 22.5KGs G.W.: 23.5KGs
Outer box(Carton): L796*W484*H235mm
Application:
Public areas, industrial facilities, harbour facilities, airport apron lighting, loading systems, container terminals and spor field.
