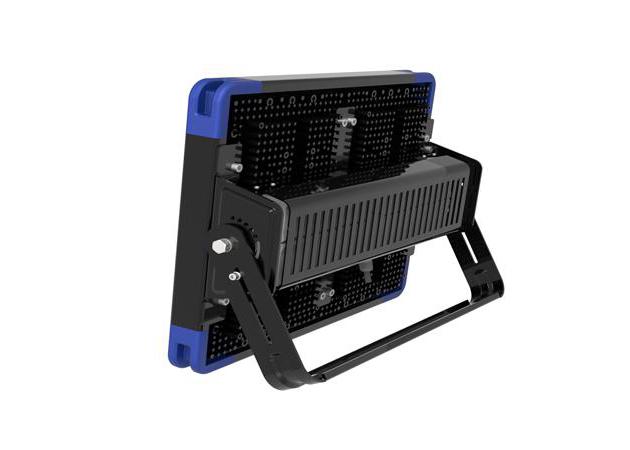

Meanwell Driver 3030 Chip Led Flood Lamps Outdoor 720W IP66 Floodlights For Sport Field
CL-SL-720W P66 Sosen / Meanwell Driver LED Stadium Light, CRI＞80 PF＞0.95 100800LM 720Watt LED Floodlight for Sport Field
Features:
1. The structure is compact and the shape is beautiful.
2. Perfect heat dissipation and high luminance light source.
3. IP67 waterproof design, suitable for different applications.
4. All the power circuits are made of high quality components and LED chip has a separate overcurrent protection without fear of damage.
5. Each LED has a high light transmittance plastic lens, and the light flux can reach 140lm / W.
Specifications:
|
Part Number |
CL-SL-720W |
Input Voltage |
AC85-277V 50/60Hz |
|
Power |
720W |
Beam Angle |
10°/25°/45°/60°/90° |
|
Luminous Flux |
100800LM |
IP Rating |
IP66 |
|
LED |
1120pcs 3030 |
Light Effect |
140LM/W(±5%) |
|
Power Factor |
>0.95 |
Warranty |
5 years |
|
CCT |
3000K-6500K |
CRI |
>80 |
|
Driver |
Sosen/ Meanwell Driver |
Lifespan |
50000Hrs |
|
Certification |
ETL/TUV/CB/CE/ RoHS/ SAA |
Product Size |

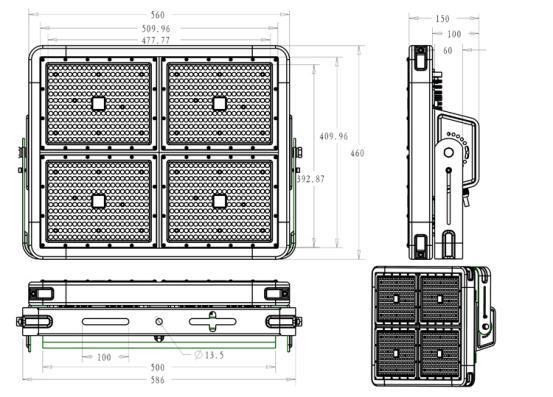

560*460*150MM |
Series Items:
| No | Part Number | LED Light Source | Power | Lumen | Driver | Dimmension(mm) |
|---|---|---|---|---|---|---|
| 1 | CL-SL-200W | 280pcs 3030 | 200W | 27000LM | Sosen/ Meanwell | L300xW250xH120 |
| 2 | CL-SL-360W | 560pcs 3030 | 360W | 50400LM | Sosen/ Meanwell | L460xW300xH150 |
| 3 | CL-SL-540W | 840pcs 3030 | 540W | 75600LM | Sosen/ Meanwell | L670xW300xH150 |
| 4 | CL-SL-720W | 1120pcs 3030 | 720W | 100800LM | Sosen/ Meanwell | L560xW460xH150 |
| 5 | CL-SL-1080W | 1680pcs 3030 | 1080W | 151200LM | Sosen/ Meanwell | L670xW560xH200 |
| 6 | CL-SL-1440W | 2240pcs 3030 | 1440W | 201600LM | Sosen/ Meanwell | L880xW560xH200 |
Note:
1. Color options: Warm White(3000-3500K), Neutral White(4500K), Cool White(6000-6500K).
2. Specification and availability are subjected to change without notice.
2. For more detail specification in PDF, please contact us separately.
Product Details:
Packing Details:
N.W: 26.5KGs G.W.: 28KGs
Outer box(Carton): L761*W644*H225mm
Application:
Public places, industrial facilities, port facilities, airport apron lighting, container terminals and sport Field
