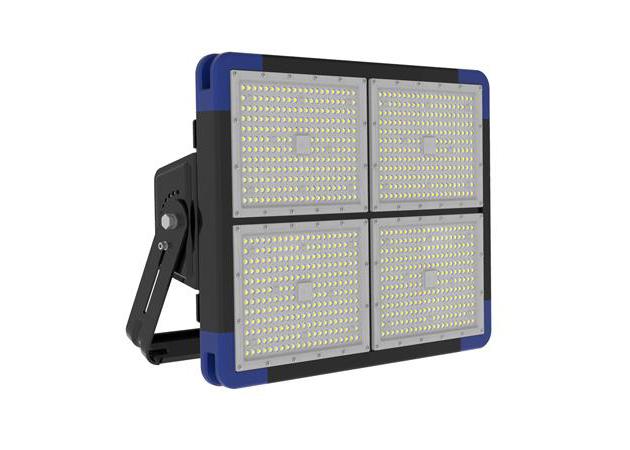

Optional Bracket Industrial Led Outdoor Flood Lights Commercial 1080W For Stadium Lighting
CL-SL-1080W Optional Bracket Outdoor Industrial 1080W LED Flood Lights, CRI＞80 PF＞0.95 151200LM 1080Watt LED Floodlight for Stadium Lighting
Features:
1. Optional adjustable angle mounting bracket and directly illuminated where needed.
2. The lamp has the advantages of high thermal conductivity of aluminum, can effectively disperse heat, effectively control the temperature rise, reducing the light decay.
3. The single high power chip of 3030 has high efficiency, high power factor and high luminous efficiency.
4. The anodic aluminum oxide reflector keeps a uniform and efficient lighting effect, cooperates with the radiator, and realizes the cooling system to ensure the safe performance of the long time work.
Specifications:
|
Part Number |
CL-SL-1080W |
Input Voltage |
AC85-277V 50/60Hz |
|
Power |
1080W |
Beam Angle |
10°/25°/45°/60°/90° |
|
Luminous Flux |
151200LM |
IP Rating |
IP66 |
|
LED |
1680pcs 3030 |
Light Effect |
140LM/W(±5%) |
|
Power Factor |
>0.95 |
Warranty |
5 years |
|
CCT |
3000K-6500K |
CRI |
>80 |
|
Driver |
Sosen/ Meanwell Driver |
Lifespan |
50000Hrs |
|
Certification |
ETL/TUV/CB/CE/ RoHS/ SAA |

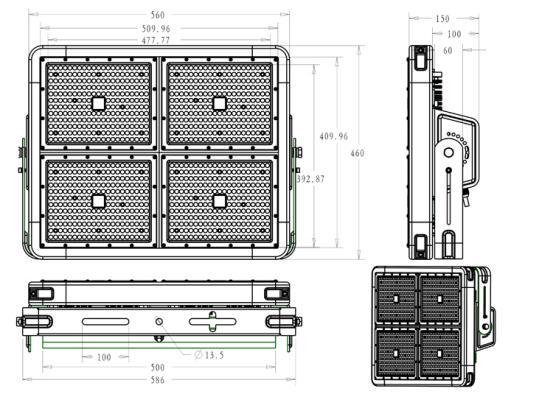

Product Size |
670*560*200MM |
Series Items:
| No | Part Number | LED Light Source | Power | Lumen | CCT | Dimmension(mm) |
|---|---|---|---|---|---|---|
| 1 | CL-SL-200W | 280pcs 3030 | 200W | 27000LM | 3000K-6500K | L300xW250xH120 |
| 2 | CL-SL-360W | 560pcs 3030 | 360W | 50400LM | 3000K-6500K | L460xW300xH150 |
| 3 | CL-SL-540W | 840pcs 3030 | 540W | 75600LM | 3000K-6500K | L670xW300xH150 |
| 4 | CL-SL-720W | 1120pcs 3030 | 720W | 100800LM | 3000K-6500K | L560xW460xH150 |
| 5 | CL-SL-1080W | 1680pcs 3030 | 1080W | 151200LM | 3000K-6500K | L670xW560xH200 |
| 6 | CL-SL-1440W | 2240pcs 3030 | 1440W | 201600LM | 3000K-6500K | L880xW560xH200 |
Note:
1. Color options: Warm White(3000-3500K), Neutral White(4500K), Cool White(6000-6500K).
2. Specification and availability are subjected to change without notice.
2. For more detail specification in PDF, please contact us separately.
Product Details:

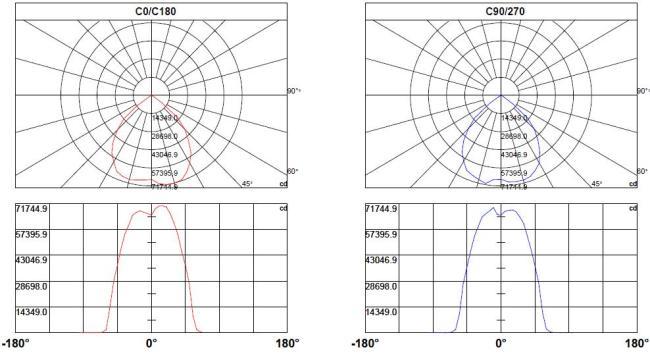

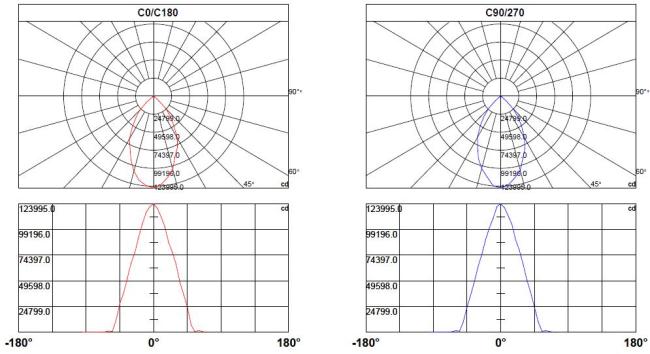

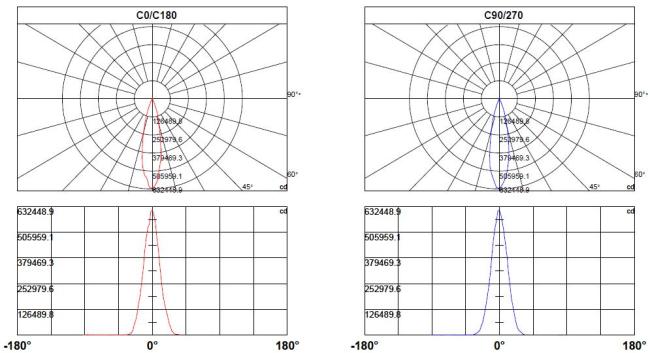

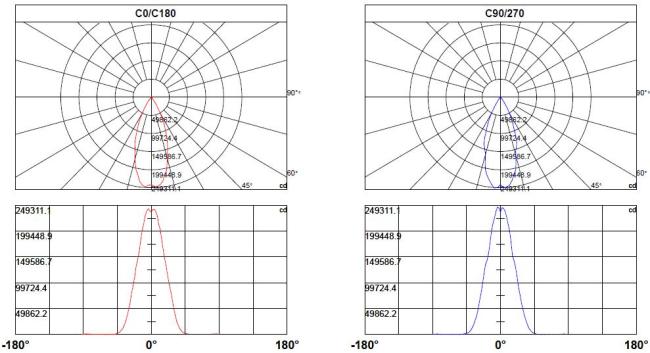

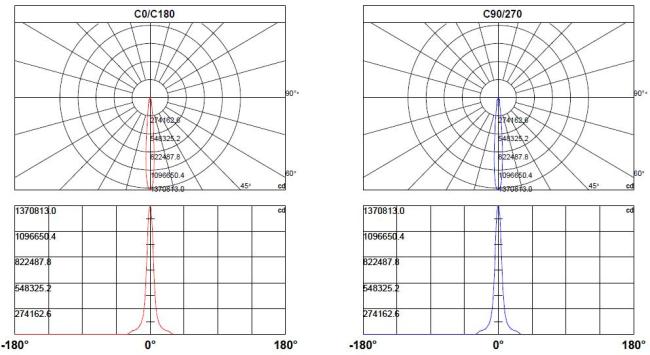

IES Light Distribution Curve:
Beam angle: 10°
Beam angle: 25°
Beam angle: 45°
Beam angle: 60°
Beam angle: 90°
Packing Details:
N.W: 44.5KGs G.W.: 47.5KGs
Outer box(Carton): 849*W774*H280mm
Application:
Public place lighting, bridges, subway, shopping mall, garden, industrial facilities, port facilities, airport apron lighting, container terminals etc.
