Multi Wall Waterproof Corrugated Polycarbonate Sheets 2mm / 2.5mm / 3mm Thickness
Cost effective multi wall waterproof / fireproof corrugated polycarbonate roofing sheets 2mm / 2.5mm / 3mm
Description:
Made by 100% virgin Bayer/GE material and 50 micro-meter UV layer, multi-wall corrugated polycarbonate sheet offers ten-year quality warranty against breakage and yellowing. It adopts two-wall R structure and can get very high light transmit (around 88%). With very small vertical bar distance, it can get a very good strength. And during installation, the connection part of two sheets can be overlapped perfectly to avoid water permeation.
SPECIFICATION OF OUR CORRUGATED POLYCARBONATE HOLLOW SHEETS:
1, Width is 1100MM
| multi-wall corrugated 1100MM-26/112 |
| Thickness: 2-3mm |
| Modular Width: 1100mm±5mm |
| Effective Width: 1050mm±5mm |
| Wave Height: 26mm |
| Wave Pitch: 112mm |
| Weight: 2.0mm:1.10kgs/sqm; 2.5mm: 1.25kgs/sqm; 3mm:1.40kgs/sqm |
| Light Transmission: Clear 85%±3; Opal 70%±3; Green: 60%±3 |
| End Sealing: Hot-melt |
| Thermal Insulation: U=4.5 W/㎡K |
| UV coating: 50 μ one side (two sides is optional) |
| Length: 6m,12m(can be any as required) |
| Color: Clear, blue, green, opal (can be any as required) |
| Structurer: two-wall |

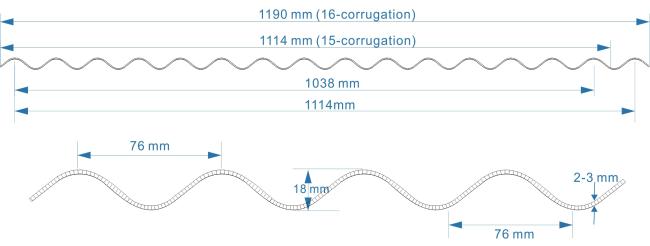

2, Width is 1190MM
| multi-wall corrugated 1190MM-18/76 |
| Thickness: 2-3mm |
| Modular Width: 1190mm±5mm |
| Effective Width: 1114mm±5mm |
| Wave Height: 18mm |
| Wave Pitch: 76mm |
| Weight: 2.0mm:1.10kgs/sqm; 2.5mm: 1.25kgs/sqm; 3mm:1.40kgs/sqm |
| Light Transmission: Clear 85%±3; Opal 70%±3; Green: 60%±3 |
| End Sealing: Hot-melt |
| Thermal Insulation: U=4.5 W/㎡K |
| UV coating: 50 μ one side (two sides is optional) |
| Length: 6m,12m(can be any as required) |
| Color: Clear, blue, green, opal (can be any as required) |
| Structurer: two-wall |
3, Width is 1080MM
| multi-wall corrugated 1080MM-28/203 |
| Thickness: 2-3mm |
| Modular Width: 1080mm±5mm |
| Effective Width: 1010mm±5mm |
| Wave Height: 28mm |
| Wave Pitch: 203mm |
| Weight: 2.0mm:1.10kgs/sqm; 2.5mm: 1.25kgs/sqm; 3mm:1.40kgs/sqm |
| Light Transmission: Clear 85%±3; Opal 70%±3; Green: 60%±3 |
| End Sealing: Hot-melt |
| Thermal Insulation: U=4.5 W/㎡K |
| UV coating: 50 μ one side (two sides is optional) |
| Length: 6m,12m(can be any as required) |
| Color: Clear, blue, green, opal (can be any as required) |
| Structurer: two-wall |
4, Width is 1100MM
| multi-wall corrugated 1110MM-28/210 |
| Thickness: 2-3mm |
| Modular Width: 1110mm±5mm |
| Effective Width: 1050mm±5mm |
| Wave Height: 28mm |
| Wave Pitch: 210mm |
| Weight: 2.0mm:1.10kgs/sqm; 2.5mm: 1.25kgs/sqm; 3mm:1.40kgs/sqm |
| Light Transmission: Clear 85%±3; Opal 70%±3; Green: 60%±3 |
| End Sealing: Hot-melt |
| Thermal Insulation: U=4.5 W/㎡K |
| UV coating: 50 μ one side (two sides is optional) |
| Length: 6m,12m(can be any as required) |
| Color: Clear, blue, green, opal (can be any as required) |
| Structurer: two-wall |
5, Width is 1140MM
|
multi-wall corrugated 1140MM-38/218 |
| Thickness: 2-3mm |
| Modular Width: 1140mm±5mm |
| Effective Width: 1095mm±5mm |
| Wave Height: 38mm |
| Wave Pitch: 218mm |
| Weight: 2.0mm:1.10kgs/sqm; 2.5mm: 1.25kgs/sqm; 3mm:1.40kgs/sqm |
| Light Transmission: Clear 85%±3; Opal 70%±3; Green: 60%±3 |
| End Sealing: Hot-melt |
| Thermal Insulation: U=4.5 W/㎡K |
| UV coating: 50 μ one side (two sides is optional) |
| Length: 6m,12m(can be any as required) |
| Color: Clear, blue, green, opal (can be any as required) |
| Structurer: two-wall |
