Eco Friendly Big U Pvc Profiles For Windows And Doors 5.95m Lamination Surface

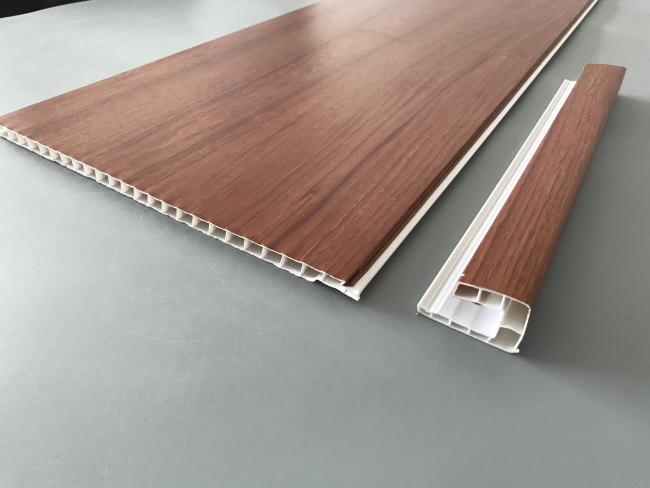

Big U PVC Extrusion Profiles With Wooden Laminated Film Length 5.95m
PVC Extrusion Profiles Detailed Description
| Main Materials |
PVC resins and calcium carbonate
|
|
| Type | PVC big U profile | |
| Specification | Length | 5.8m or 5.95m |
|
Suitable thickness
|
7mm-10mm | |
|
Strength
|
≥160N | |
PVC Extrusion Profiles Fire Rate Test
|
Report No.
|
V03 |
Specification |
8mm*5.95m |
||||
|
Product
|
PVC Profile |
Standard |
BS EN 13501-1:2007 |
||||
|
Test Items
|
Measure Unit |
Technical Requirement |
Test Results |
Individual Judgment |
|||
|
Fire growth rate index (Figra)
|
W/s |
C |
≤250 |
105 |
Compliant |
||
|
Lateral flame spread ( LFS)
|
m |
<edge of specimen |
Yes |
Compliant |
|||
|
Total heat release within 600 s(THR 600s)
|
MJ |
≤15 |
11.5 |
Compliant |
|||
|
Flame spread (Fs)
|
Surface |
mm |
≤150 | 30 | Compliant | ||
| Edge | 33 | Compliant | |||||
|
Smoke growth rate (SMOGRA)
|
m2/s2 | S2 | ≤180 | 192 |
S3 Compliant |
||
|
Total smoke production within 600 s(THR 600s)
|
m2 | ≤200 | 666 | ||||
|
Flaming droplests/particles
|
------ | d0 |
No flaming droplets/particles occur within 600s |
Yes | Compliant | ||
|
Ignition of the filter paper
|
------ | No ignition of the filter paper | Yes | Compliant | |||
|
Conclusion
|
The combustion performance of sample is satisfied BS EN 13501-1:2007 about grade C-s3,d0. |
||||||
PVC Extrusion Profiles Advantages:
1. Good insulation effect,easy to clean and disassemble .The inner surface is smooth.
2. Good texture and matt effect.
3. Long storage time,in the absence of damage normal use, you can use it 20-25 years.
4. Non-toxic pollution, not contain harmful substances like formaldehyde, and so on.
5. High strength, long service life and good quality.
6. Good electric insulation,Metal-free, good electrical insulation and thermal stability.
7. Good mechanical strength. The hollow board can be cut, sawing, nailing.
8. Good flexibility ,easy to shape ,not brittle.
9. Sound insulation, thermal insulation and stable performance.
10. Light weight , easy installation, reducing the workload of workers, saving installation costs.
11. State Class B1 fire protection materials,fireproof,flame retardant,retardant values is above 30.
12. Waterproof, weather resistance, corrosion resistance, anti-aging
Our Service Towards PVC Extrusion Profiles
1. Quotation: To be sent in excel files with product pictures as soon as you inquiry
2. Free samples are available
3. Package: supplying various packing design with customers brand and idea
4. Delivery: 15-20days
5. Since preparing material to the finished products, every steps are controlled by our QC and sales.
6. While order are under producing, we will select some samples for testing.
7. After finished producing, every pieces will be checked one by one by QC.
8. Before loading, our worker will check the products appearance and package.
9. Shipment: Pre-shipment inspection is available. The lowest sea freight and fastest vessel will be selected.
Some Notices For The PVC Panel Installation
The panels cannot be installed under following situations:
1) outdoors, on account of possible discolouration and the possibility that the product becomes brittle, unless explicitly stated otherwise or shown on the insert in the package.
2) in spaces with a temperature in excess of 60°C (140°F) or lower than -20°C (- 5°F), for example in a sauna or refrigerated area.
3) on walls and ceilings where the contact temperature may be above 60°C (140°F), e.g. on a chimney breast, by a stove or radiators
4) in poorly ventilated areas.
5) in areas where there is an abnormally high concentration of sulphur (H2S).
