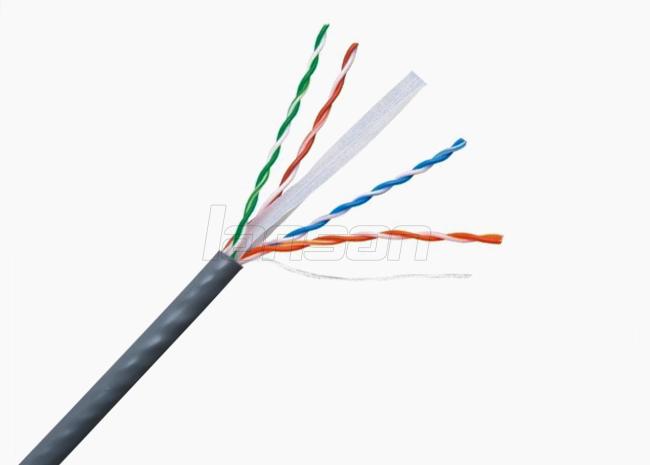

Solid Bare Copper CAT6 UTP Lan Cable 1000ft 23AWG 4 Pairs PE Insulation

Price Negotiable
Price: Negotiation
MOQ: 50 Boxes
Delivery Time: 12-15 work day
Brand: OEM/ ODM
Product Description

Pass Permlink Test 1000ft 23AWG 4Pairs Solid Bare Copper CAT6 UTP Lan Cable


Product feature



Technical parameters beyond the requirements of Cat5e transmission standard
Adopt import HDPE insulating materials
Insulating material consistency support lower propagation delay deviation
Small diameter size, reduce the twisting in the installation


Specificaiton


  No. of Cord   4 Pairs
  Conductor   Material
  Construction
  Insulation   Material   HDPE
  Filler   /
  Shield   Material   /
  Braiding   /
  Drain Wire   Material   Alm Wire
  Rip Cord   Nylon
  Jacket                 Material   PVC
  O.D.   6.2mm±0.2
  Color   Customized
  Marking   Customized
  Insulation Resistance   Min. 5000 mega ohms-km at 20
  Dielectric Test   1000V DC /1 min ; No Breakdown
  Bend Radius   4 x cable diameter
  Operating Temperature   -30 ~ 80



Product application

Integrated wiring system
Support data, voice, video signal
Support 10Base-T, 100Base-TX, 1000Base-TX
100Base-VG-ANYLAN, 155Mbps ATM, 622Mbps ATM, 1000Base-T


Advantage


  • For quality, our superior raw material, skilled production team, advanced equipment and mature quality control system could assure you of that we could offer the cable with high and consistent quality.
  • For price, our offer can be much more competitive than other suppliers such as the trading company, as we have our own factory.
  • For production capacity, we could produce 30 million meters cable monthly, which will assure you of prompt delivery of the goods.
  • Certificates: ISO, CE, CCC,ETL, RoHS ,ANATEL & UL approval.
