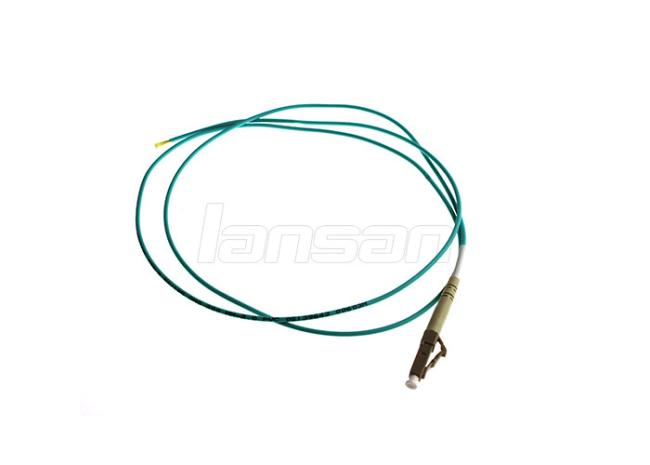

OS2 Singlemode Fiber Optic Patch Cord With LC Type Connector LSZH Pigtail
Price:
Negotiation
MOQ:
1000 Meters
Delivery Time:
10-12 Work Days
Brand:
OEM/ ODM/ Lansan
Product Description
OS2 Singlemode IEC Standards With LC Type Connector LSZH Pigtail
Description
- Fiber patch cord Complies with IEC, Telcordia GR-326-CORE standard
- Low insertion loss and high return loss
- PC/UPC/APC polishing
- Diameter: 0.9, 2.0, and 3.0mm
- Single or multi mode is available
- 4 fiber, 6 fiber, 8 fiber 12 fiber or 24 fiber is available
- 10G fiber or LSZH cable is available
- Excellent changeability and repeatability
- Tensile strength: 10N
- Operating temperature range: -40 to 80° C
- Storage temperature range: -40 to 80° C
- Color of cable: Yellow (SM), Orange (MM), and Aqua (OM3)
Specifications
| Insertion loss | Less than 0.3dB |
| Return loss | MM more than 35dB |
| SM more than 55dB | |
| APC more than 60dB | |
| Repeatability | Less than 0.2dB |
| Changeability | Less than 0.1dB |
| Operting termperature | -40~75 |
| Storage temperature | -40~75 |
| Tensile strength | 100N |
| Min. bending radius | 35mm |
| Length | Customized |
