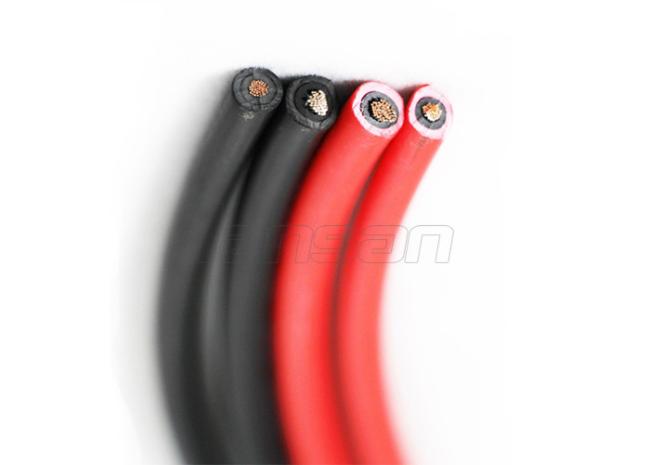

Fire Resistant Special Cables 305 Meters / Wooden Spool 2.5mm² TUV PV Cable
Price:
Negotiation
MOQ:
10000 meters
Delivery Time:
12-14 Work Day
Brand:
OEM/ ODM/ Lansan
Product Description
305Meters / Wooden Spool 2.5mm² TUV PV Cable Fire Resistant Cables
Description
A. Application:Double insulation,electron-beam cross linked cables for photovotaic power station.
B. Construction:Tinned copper,according toVDE0295/IEC60228,Class5
C. Material Properties/Standards:
- Fire-resistant performance:IEC60332-1.
- Smoke emission:IEC61034;EN50268-2
- Low fire load:DIN51900
- Approvals:TUV2PfG 1169/08.2007 PV1-F.
- Application Standards:UNE211 23;UNE20.460-5-52, UTE C 32-502
Technical Data
- Nominal Voltage:U0/U=600/1000V AC, 1000/1800V DC ;
- Test Voltage:6500V,50Hz,5Min.
- Temperature Rating:45oC upto+125oC, -40oF upto+257oF, Ambient temperature:25years(TUV) -40oC upto+90oC, -40oF upto+194oF, Max.Short circuit temperature:280oC, +536oF.
- Bending Radius:Fixed installation>4X Occasionally moved>5X
Specification
| Construction |
Conductor Construction |
Insulation Thickness |
O.D | Resistance Max. |
| n×mm² | n/m | mm | mm | Ω/Km |
| 2×1.5 | 30/0.25 | 0.7 | 8.3±0.2 | 13.3 |
| 2×2.5 | 50/0.25 | 0.7 | 9.2±0.2 | 7.98 |
| 2×4.0 | 56/0.3 | 0.7 | 12.0±0.2 | 4.75 |
| 2×6.0 | 84/0.30 | 0.8 | 13.5±0.2 | 3.39 |
| 2×10.0 | 142/0.30 | 0.9 | 17.6±0.2 | 1.95 |
| 2×16.0 | 228/0.30 | 1.1 | 19.8±0.2 | 1.24 |
