Rotary Pneumatic Dot Peen Engraving Machine 170 X 100 mm For Metal product
Rotary Pneumatic Dot Peen Engraving Machine 170 X 100 mm For Metal Product
Dot Peen Engraving Machine Product Introduce

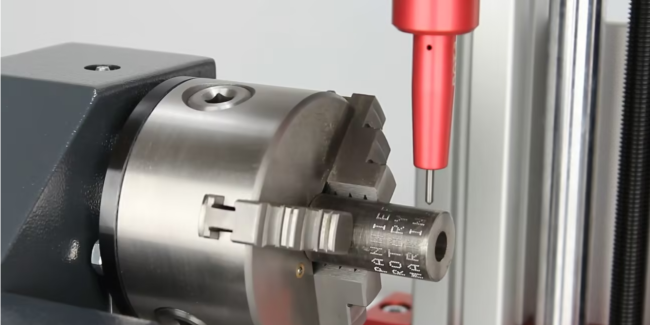

Pneumatic Dot Peen Engraving Machine that comes with a Rotary Fixture Base designed to provide stability during marking. the machine also has the high ability to mark components of all shapes (circular and flat) and sizes with equal efficiency and precision. Moreover, the part marking machine provides you with the freedom to mark parts of all types and give a professional touch to the products. Although there is various part marking methods being used in the industry, the HAE-PR012 uses the Dot Peen Marking technique to mark the product.
Dot Peen Engraving Machine Specification
|
Model |
HAE-PR012 Dot Peen Engraving Machine |
|
Operation System: |
Windows2000/XP |
|
Marking Area: |
170×100mm |
|
Min Character: |
1×1mm (character size controlled by software) |
|
Marking Speed: |
30-200mm/s(3-6 character/second) |
|
Marking Depth: |
0- 1.5mm (depends on material) |
|
Lifting Height: |
0-50mm |
|
Marking Pin Hardness: |
HRC95° |
|
Impact Frequency: |
300-400times/second |
|
Software |
X6 |
|
Extra Port |
USB |
|
Graphics: |
Compatible with AutoCAD,CorelDRAW, CAXA |
|
Voltage: |
220V,50HZ |
|
N.W/G.W |
16kg/28kg |
|
Dimensions: |
365×270x 200mm |
Dot Peen Engraving Machine Marking Content
1. All Characters and English Letters
2. Serial Numbers and Other Related Information
3. Time & Date
4. VIN Codes
5. Barcodes and 2D Codes
6. Dot and Continuous line
7. Graphics, Logos, Logo Outlines, Marks and Special Symbols
At times the industries demand permanent marks on various products so they can be identified throughout their life. As a result, the direct part marking methods are often used. These methods are designed to leave permanent marks on the products. Wuhan HAE offers you with devices that are extremely functional in your industries. These include laser marking machines, ink jet printers, etc. You can use the ink jet printers in various applications, however, other solutions like laser marking are very popular too.

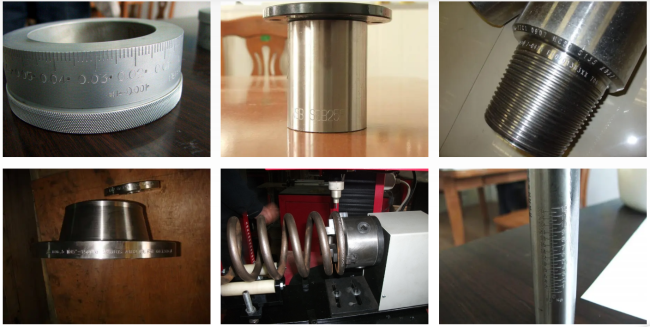

Dot Peen Engraving Machine Marking samples
Dot Peen Engraving Machine Applications
The device fulfils the marking needs of a wide range of industries like:
1. Electronics Applications Industries
2. Automotive
3. Metal Processing Industries
4. Medical Applications
5. And all Metal industries
This is just the tip of the iceberg since there is seldom a part that comes without marking. Furthermore, you will find a kind of marking on every part that you see. These marking methods may differ from inkjet markings to laser marking to direct part marking. However, all these marking methods have their own pros and cons that need to be considered based on your product. Part Marking devices find a high number of applications across almost every industry.
