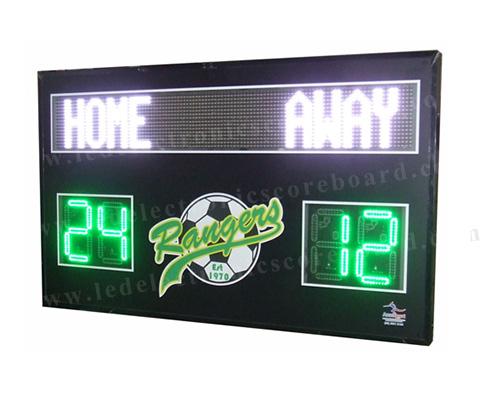

110V ~ 250V LED Football Scoreboard Iron / Steel / Aluminum Frame Material
White Color Team name and Message Sign LED Football Scoreboard with Green Color Digits
| PRODUCT INFORMATION | |
| Model No. : | LG-LFS4D300G-VTN |
| Dight Height and Color : | 12'' 300mm Height in Green Color |
| Display Dimension : | 2.6 ft x 5.2 ft x 4inch ( 800mm x 1600mm x 100mm ) |
| Team Name Height and Color : | Pitch12mm In White Color |
| Team Name Size : | 192mm x 1344mm x 1 Line |
| Operation Type : | PVC Buttons Type Controller Box / Windows Software (Wireless) |
| View Distance : | 1m ~ 300m |
| Application : | Football Game |
| Frame Color : | Black / other Colors |
| Weight : | 40kgs |
| Waterproof : | Outdoor Type |
Function : Show the Football Game Information
Specification :
1) Use of the environment: Indoor or Outdoor
2) Brightness: High Level Brightness
3) Height of Characte: 12'' 300mm
4) Display Led Color : Green (Any other kind is Option)
5) Frame Color : Black Color (Any other kind is Option)
6) Team Name / Message Sign : Pitch12mm Led Module in White Color
Overall Structure :
1) Display usage:
8 Pieces digits , 12 inch character in Green Color
14 Pieces led modules , Pitch12mm in White Color
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ,0% ~ 95% relative humidity
Operation Type :
1) PVC Buttons Controller Box / Windows Software
2) Hard - wire / Wireless Type
3) Operation Distance : Max 1000Meters.
4) Controller box works by 110V ~ 240V Power (Battery is an Option)
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension : 870mm x 1670mm x 160mm ( Carton ) / 50kgs
Screen Dimension : 2.6 ' x 5.2 ' x 4''
TIME : GAME TIME / DAY TIME - 4 digits display Hours : Minutes or Minutes : Seconds
SCORES : Display number for 00 - 99 , 2 Digits for each team
Team Name : Display Letter for A - Z ,Each name display Max 6 pcs of Letters
Message Sign : Double Function with Team Name ,Moving Message
Siren : Include . When time is reach to 00 :00 , it will sound for 5 ''
Led Brightness : Option
SCOREBOARD FUNCTION IS CUSTOMIZED ,ANY FUNCTION IS WELCOME !
Q1. What is your payment ?
A : We accept T/T , Wester Union , Paypal.
Q2. When can you arrange the shipment after i have placed an order ?
A : Usually about 10days after receiving Payment.
Q3. Can you accept customized ?
YES.Welcome!
Q4. Is it OK to print my logo on the product?
A : Yes. Please inform us formally before our production and confirm.
1. Linger devote to design the different sports of customized scoreboard, any kind of digit height and digit
color is made for different scoreboard.
2. Scoreboard controller type can be with cable or wireless type.
3. The brightness is enough for outside in day and night.
4. Scoreboard with Iron waterproof cabinet and prevent the impact.
5. The front face is acrylic glass board to protect digits and the acrylic glass board is UV Protection type.
1. Test the Leds Chrominance and Angle in darkroom
( Using Equipment : Light Source Analysis System)
2. Test the Temperature and Humidity
(Using Equipment : High – Low Temp. & Variation Chamber)
3. Test the Seismic Performance
(Using Equipment : Transportation Vibration Testing Machine)
4.Test the waterproofing performance and long-term ponding water.
(Using Equipment : Splash Water Test Equipment )
5. Passed all above Testing ,product will be aging at least for 72Hours.
(Aging Method : Light the all leds and to be Flashing )
