Environmental Cyclic Corrosion Testing Machine , Salt Spray Chamber Flexible Design
Price:
Negotiable
MOQ:
1 Set
Delivery Time:
4-5 weeks
Brand:
SANWOOD
Product Description

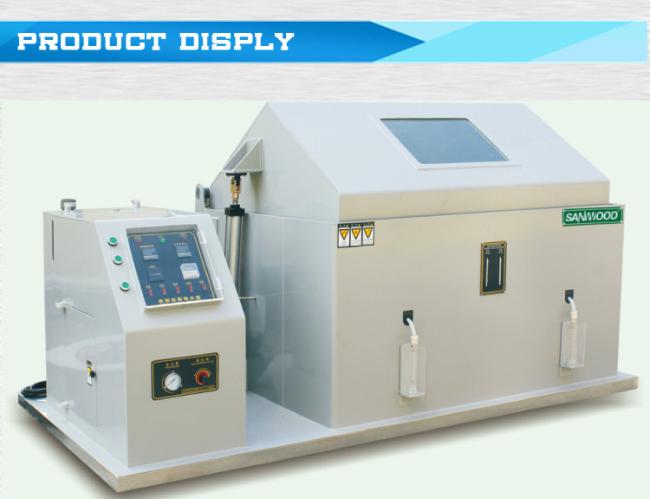

Salt Spray Environmental Cyclic Corrosion Test Machine Salt Spray Tester
1. Application
Salt Spray Environmental Cyclic Corrosion Test Machine are designed to be flexible enough to comply with as many different CCT specifications as possible.
As standard they come with the ability to create 4 distinct climatic.
- Wetting mode;
- Salt Spray mode;
- Drying mode;
- Controlled humidity mode;
2. Technology Parameters
| Model | SM-Y-010 | SM-Y-016 | SM-Y-020 |
| Internal dimensions (mm) | 770*1430*700 | 800*1900*850 | 800*2100*850 |
| Overall dimensions (mm) | 1450*2520*1620 | 1350*3000*1700 | 1650*3200*1700 |
| Technical structure | |||
| Temperature range | +10℃ ~ +110℃ | ||
| Humidity range | 30% ~ 98% RH | ||
| Temperature tolerance | ±2.0 ℃ | ||
| Humidity tolerance | +2%,-3% | ||
| Salt concentration tolerance | ±1% | ||
| Spray deposition | 1~2ml / 80cm2 · h | ||
| Spray type | Continuous / Periodic | ||
| Temperature Controller | Programmable color touch display controller | ||
| Interior /Exterior material | Glass fiber reinforced plastics; | ||
| Sealing | Hydrostatic hood seal | ||
| Power Supply | 380V 50HZ Three-phase five little system | ||
3. Salt Spray Environmental Cyclic Corrosion Test Machine
