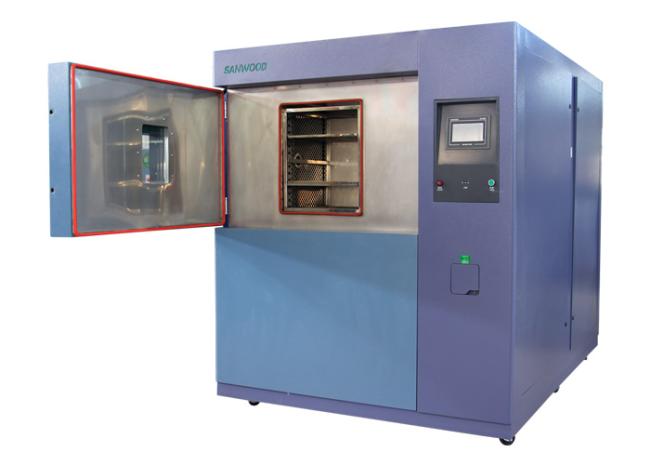

High And Low Temperature Chamber , Thermal Shock Test Equipment For Automotive Parts Test

Name: High And Low Temperature Chamber , Thermal Shock Test Equipment For Automotive Parts Test
Brand: Guangdong Sanwood Technology Co.,Ltd

Price Negotiable

Price: Negotiable

MOQ: 1 SET

Delivery Time: 4-5 weeks

Brand: SANWOOD

Product Description

Thermal Shock Test Equipment For Automotive Parts Test

Main features of Thermal test chamber:
1. Programmable Controller with RS232C, 7 LCD touch panel control
2. Stainess steel Interior, galvanized steel sheet exterior
3.2PCS stainless steel loading shelves free
4. Multipane viewing window with heater
5. 50mm diameter cable port
6. Floor stand with castors.
Main parts imported: Tecumseh, Danfoss, Bitzer, GEA BOCK, Rainbow etc.
Top-grade raw material insure the reliability performance
Excellent design bring you good user experiences

Model		SM-50-3P-A	SM-80-3P-A	SM-100-3P-A	SM-150-3P-A	SM-200-3P-A	SM-300-3P-A	SM-500-3P-A
Temperature	Temperature impact range	-70℃～150℃ (A:-45℃～150℃;B:-70℃～150℃)
	Temperature fluctuation	±1.0℃
	Low temperature precooling time	25.0℃～-70.0℃ Within 60 mins 1.0～3.0℃/min
	High temperature preheating time	25.0℃～200.0℃ Within 60 mins 3.0～7.0℃/min
	Temperature conversion time	3S
	Temperature recovery time	Within 5 mins				Within 10 mins
Material / components	Internal material	Stainless steel(SUS304)
	External material	Cold rolled steel sheet / powder spraying
	Heat insulating material	100mm thickness polyurethane plate＋10mm thickness mineral wool
	Fan	Centrifugal blower
	Compressor	France Tecumseh, Germany Bock, Germany Bitzer
	Condenser	Air cooling, water cooling				water cooling
	Refrigerant	R404A,R23,R508
	Evaporator	Fin - and - Tube Heat Exchanger
	Heater	Nickel chromium alloy heating wire
Size	Interior size(mm) WHD	350400 350	400500 400	500500 400	500600 500	650460 670	960460 670	960650 800
	Outer size(mm) WHD	14001750 1750	14501850 1800	15501850 1800	15502050 2050	17002000 2200	20502000 2250	20502150 2450
	Volume(L)	50L	80L	100L	150L	200L	300L	500L
Operating ambient temperature		+5 ~ 35℃
Power supply		380V AC 50/60Hz	380V AC 50/60Hz	380V AC 50/60Hz	380V AC 50/60Hz	380V AC 50/60Hz	380V AC 50/60Hz	380V AC 50/60Hz
Controller		SANWOOD SH5600:Equipped with RS232 port；(7.0 inch controller) USB data export )
