USB Port Temperature And Humidity Test Chamber With Stainless Steel Plate
Stainless Steel Plate Temperature And Humidity Chambers with USB Port
It can simulate different climatic conditions, such as heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, which defines the performance of material. By testing the product under different climatic conditions to see whether its performance can meet the intended requirements. It is widely applied in the industries of electron, electrical equipment, vehicle, metal, food, chemistry, building materials, luggage, adhesion tape, printing, packaging, and other product components and materials.
Six advantages of Sanwood Humidity Test Chamber :
1.Temperature humidity chamber Evaporator no frosting under longtime Low temperature and low humidity running.
2.Automatic control system refrigerant demand save electricity above 30%
3.High heat load tested samples test environment
4.realize 95℃ 95%high temperature and high humidity environment.
5.10% 20 ℃ ultra-low temperature range control ability
6.Multi-language selection: Chinese, English, Russian, Korean, Japanese, German multilingual language switching.
| Model | SMC-80-CC | SMC-150-CC | SMC-225-CC | SMC-408-CC | SMC-800-CC | SMC-1000-CC | SMC-1500-CC | |
| Temperature | Temperature range | -70℃～180℃(A:0℃～180℃;B:-20℃～180℃；C:-40℃～180℃;D:-70℃～180℃) | ||||||
| Temperature fluctuation | ±0.5℃ | |||||||
| Cooling rate | 180.0℃～25.0℃ Cooling rate 2.0～3.0℃/min 25.0℃～-40.0℃ Cooling rate 1.0～2.0℃/min -40.0℃～-70.0℃ Cooling rate 0.7～1.5℃/min | |||||||
| Heating rate | -70.0℃～180.0℃ Within 60 mins 3.0～5.0℃/min | |||||||
| Temperature uniformity | ±1.5℃ (-40.0℃～100.0℃) | |||||||
| ±2.0℃ (100.1℃～180.0℃or-40.0℃～-70.0℃) | ||||||||
| Humidity | Humidity range | 20.0%RH～98.0%RH | ||||||
| Humidity fluctuation | ±1.0% RH | |||||||
| Humidity uniformity | ±2.0％RH | |||||||
| Material | Internal material | SUS304 stainless steel(1.2mm) | ||||||
| External material | cold-rolled plate(1.2mm),powder coating | |||||||
| Heat insulation | polyurethane foam(100mm)+glass wool(10mm) | |||||||
| Fan | Centrifugal fan(Impeller Fan) | |||||||
| Refrigeration compressor | hermetic compressor(Tecumseh) | |||||||
| Cooling mode | air cooling or water cooling | |||||||
| Refrigerant | R404A,R23,R508 | |||||||
| Evaporator | finned-tube exchanger | |||||||
| Heater | nickel chrome strip heater | |||||||
| Humidifier | Steam Humidifier | |||||||
| Size | Interior size(mm) W*H*D | 400*500*400 | 500*600*500 | 500*750*600 | 800*850*600 | 1000*1000*800 | 1000*1000*1000 | 1200*1000*1250 |
| Outer size(mm) W*H*D | 700*1630*1180 | 700*1670*1275 | 700*1880*1290 | 1000*1950*1400 | 1200*2050*1590 | 1200*2050*1780 | 1400*2050*2030 | |
| Volume(L) | 80L | 150L | 225L | 408L | 800L | 1000L | 1500L | |
| Weight(kg) | 280 | 380 | 450 | 620 | 680 | 840 | 955 | |
| Working Temperature | +5 ~ 35℃ | |||||||
| Power supply | 220V AC 50/60Hz 22A | 220V AC 50/60Hz 31A | 220V AC 50/60Hz 33A | 380V AC 50/60Hz 17A | 380V AC 50/60Hz 25A | 380V AC 50/60Hz 27A | 380V AC 50/60Hz 50A | |
| Controller | Standard: South Korea TEMI-1500 | |||||||

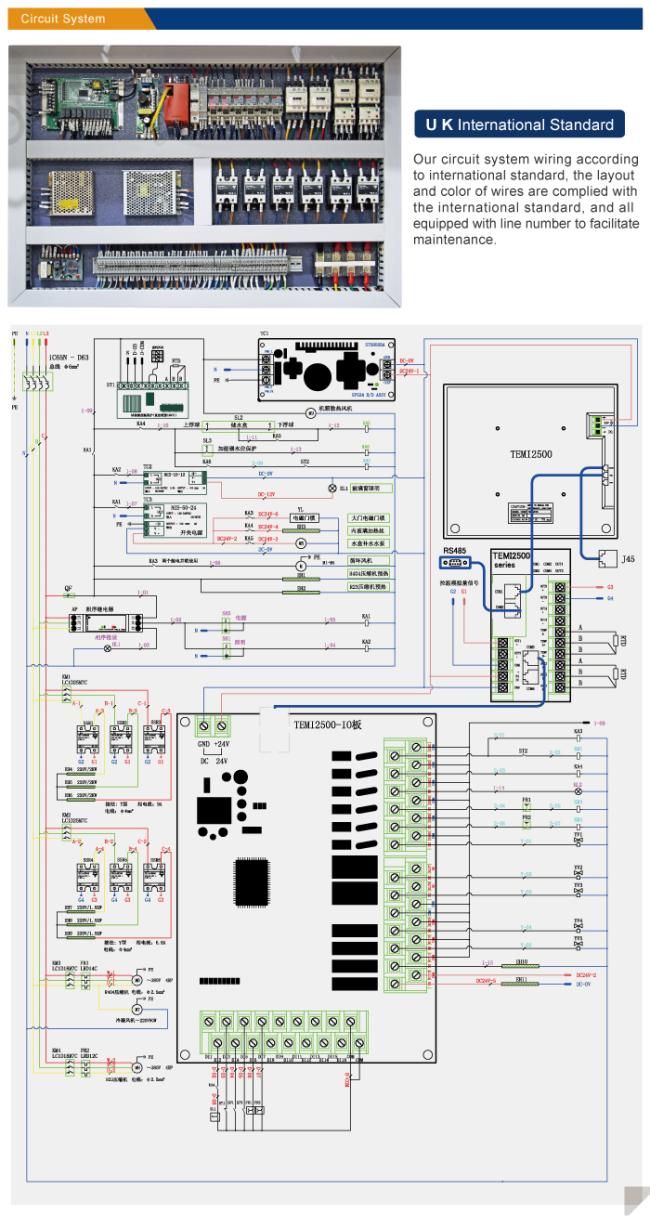

Circuit System Circuit diagram for Example.
Customized chambers are also available.
