Programmable Environmental Test Chamber BenchTop Temperature (& Humidity) Chamber for laboratories Safety Test
Programmable environmental test chamber
Bench-Top Type Temperature (& Humidity) Chamber

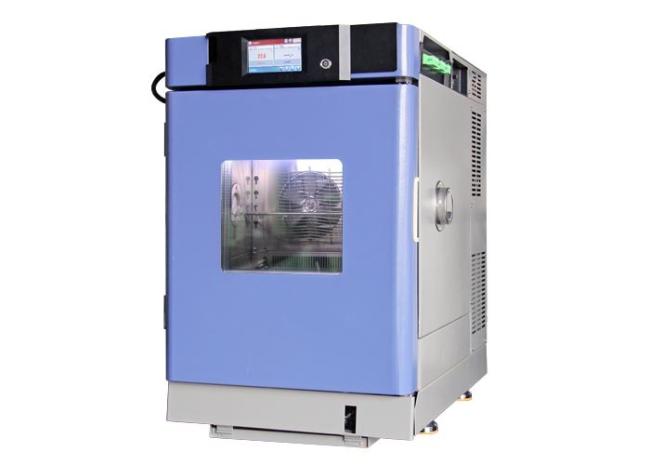

Small Temperature Test Chamber
Premium features for the ultimate in testing flexibility
Are you looking for the smallest chamber possible to get your testing done? Hate the footprint and noise of other temperature chambers? Need to closesly integrate other test equipment? These are the temperature chambers for you!
Small Temperature Test Chamber Easy to install and own:
The models are small enough be placed underneath a benchtop, or on top.
Designed for integration with other test equipment to make a complete test stand.
The smaller models run on standard 115V power, enabling easy installation anywhere.
Extremely quiet operation as low as 52 dba, suitable for quiet labs or offices.
Small Temperature Test Chamber CHAMBER DESIGN FEATURES:
.Premium design with a space-saving footprint and quiet operation suitable for offices and small labs
.One 1" diameter cable port on the right side (Note: previous model series also included standard port on left)
.One adjustable stainless steel shelf
.Temperature output terminals
Small Temperature Test Chamber SAFETY FEATURES:
.Three levels of overheat protection
.Specimen power supply control terminal
Small Temperature Test Chamber Specification:
| Model | SMC-22-CC | |
Temperature |
Temperature range | -40℃～150℃ |
| Temperature fluctuation | ±0.5℃ | |
| Cooling rate |
150.0℃～25.0℃ Cooling rate 2.0～3.0℃/min 25.0℃～-40.0℃ Cooling rate 1.0～2.0℃/min -40.0℃～60.0℃ Cooling rate0.7～1.5℃/min |
|
| Heating rate | -60.0℃～150.0℃ Within about 60 minutes 3.0～5.0℃/min | |
| Temperature uniformity | ±1.0℃ (-40.0℃～100.0℃) | |
| ±1.5℃ (100.1℃～180.0℃or-40.0℃～-60.0℃) | ||
Humidity |
Humidity range | 20.0%RH～98.0%RH |
Humidity fluctuation |
±1.0% RH | |
| Humidity uniformity | ±2.0％RH | |
Material |
Internal material | SUS304 stainless steel(1.2mm) |
| External material | cold-rolled plate(1.2mm),powder coating | |
| Heat insulation | polyurethane foam(100mm)+glass wool(10mm) | |
| Fan | Centrifugal fan(Impeller Fan) | |
| Refrigeration compressor | hermetic compressor(Tecumseh) | |
| Cooling mode | air cooling | |
| Refrigerant | R404A,R23,R508 | |
| Evaporator | finned-tube exchanger | |
| Heater | nickel chrome strip heater | |
| Humidifier | Steam Humidifier | |
| Size | Interior(mm) W*H*D | 300 X 300 X 250 22.5L |
| Exterior(mm) W*H*D |
440×740×885(-40～+150℃)
|
|
| Weight | 85kg | |
| Working Temperature | +5 ~ 35℃ | |
| Power supply | 220V/AC 50/60Hz 12A | |
| Controller | Standard: SANWOOD | |
