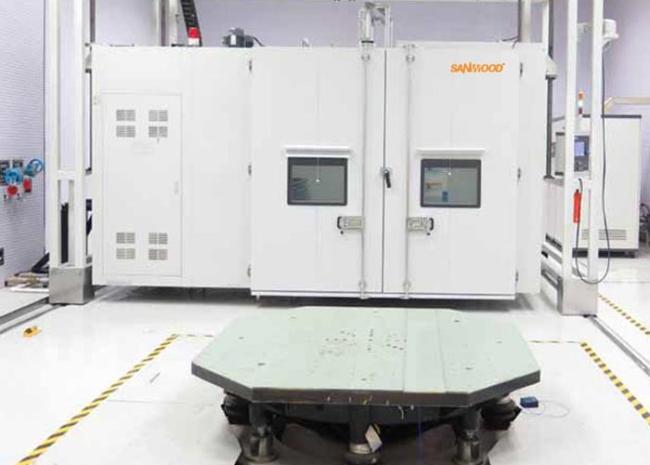

Electrodynamic Integrated Environmental Test Chamber with vibration test sytem

Electrodynamic Integrated Environmental Test Chamber with vibration test sytem

Temperature, Humidity and Vibration Test Chamber Brief introduction
Rapid temperature change (damp heat) vibration comprehensive test chamber is suitable for high temperature, low temperature, high low temperature cycle and temperature stress screening (ESS) test for whole machine products and spare parts. The vibration table is connected with the constant temperature humidity test, then it can realize the temperature, humidity, vibration comprehensive test.

SANWOOD temperature, humidity, vibration comprehensive test chamber advantages
1.Temperature rise or cooling capacity can be designed as high as 40C/min temperature change rate
2.Specially designed dry air equipment, to protect the sample surface condense during the testing
3. Modern design, latest modular creation technology ,perfect control power.
4.Color screen 32 bit control system, Ethernet E management , USB data storage function, APP mobile platform management
5. Programmable load power 4 ON/OFF output control, to protect the products safety
6. Unique air circulation system
7. Equipped with equipment overload, overheat, abnormal power supply, overpressure, fault detection, etc. protective measures
8. Test procedure has humanized design, like intelligent power off reset, automatic memory continued and automatic origin starting function, etc.
9.Independent product have anti condensation function and over temperature, calm, smoke protection function
10. Auto return to room temperature setting
11.Diagnostic system for information on operating times and possible failures.
12.The device can expand the remote service function and provide the machine using a mathematical disc
13.Multi-language selection: Chinese, English, Russian, Korean, Japanese, German multilingual language switching

Temperature, humidity and vibration test chamber Product accessories
1.Standard equipment
Test product load power supply 3 groups
Each side of the left and right side has a 100mm Pin hole
Pin hole silicone plug 2 PCS
Compressed air drying filter
20L water storage tank 1 PCS
Pure water filter 1 PCS
Matched blind plate
Supporting vertical hole bottom plate

2.Optional equipment
Isolated transducer, Protection device for testing product ( Sample protection to meet the standards NE60519-2.1993)
50mm diameter Pin hole
Automatic water supply device
Nitrogen auxiliary device
Spare parts package
E management and Networking software
Video monitoring system
APP mobile platform management
Supporting horizontal hole bottom plate

Temperature, humidity and vibration test chamber Specification:
