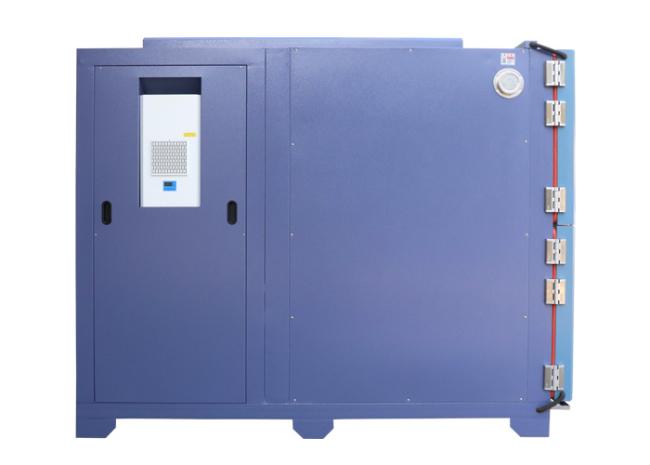

Two Zone Thermal Shock Test Chamber , Environmental Conditioning Thermal Test Chamber
High Quality environmental conditioning chamber Two Zone Thermal Shock Test Chamber
| Model | SM-50-2P-A | SM-80-2P-A | SM-100-2P-A | SM-150-2P-A | |
| Temperature | Temperature impact range | -65℃～150℃ (A:-45℃～150℃;B:-65℃～150℃；) | |||
| Temperature fluctuation | ±1.0℃ | ||||
| Low temperature precooling time | 25.0℃～-75.0℃ Within 60 mins 1.0～3.0℃/min | ||||
| High temperature preheating time | 25.0℃～150.0℃ Within 45 mins 3.0～7.0℃/min | ||||
| Temperature conversion time | 3s | ||||
| Temperature recovery time | Within 5 mins | ||||
| Material / components | Internal material | Stainless steel(SUS304) | |||
| External material | Cold rolled steel sheet / powder spraying | ||||
| Heat insulating material | 100mm thickness polyurethane plate＋10mm thickness mineral wool | ||||
| Fan | Centrifugal blower | ||||
| Compressor | fully closed or semi-closed | semi-closed | |||
| Condenser | Air cooling, water cooling | ||||
| Refrigerant | R404A,R23,R508 | ||||
| Evaporator | Fin - and - Tube Heat Exchanger | ||||
| Heater | Nickel chromium alloy heating wire | ||||
| Size | Interior size(mm) W*H*D | 350*400*350 | 400*500*400 | 500*500*400 | 500*600*500 |
| Outer size(mm) W*H*D | 1100*1930*1460 | 1150*2130*1550 | 1250*2330*1550 | 1250*2530*1650 | |
| Volume(L) | 50L | 80L | 100L | 150L | |
| Operating ambient temperature | +5 ~ 35℃ | ||||
| Power supply | 380V AC 50/60Hz | ||||
| Controller | SANWOOD SH5600:Equipped with RS232, RS485 port； (7.0 inch controller) USB data export | ||||
