Climatic Laboratory Testing Equipment Environmental Simulation
Used Price Laboratory Testing Equipment Environmental Simulation Climatic Waterproof Spray Room Rain Proof Test

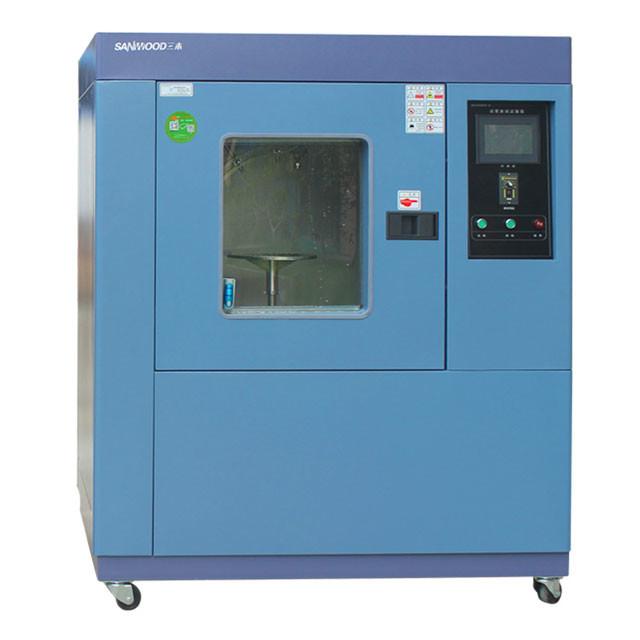

Rain spray test chamber simulates the watet drip environment to test the water resistance and sealing of the samples during storage, transportation and usage. It is widely applied to electrical and electronic products, lamps and lanterns, electrical cabinet, electrical components, automobile, motorcycle and its spare parts and other products. It provides the basis to improve the performance of the products.

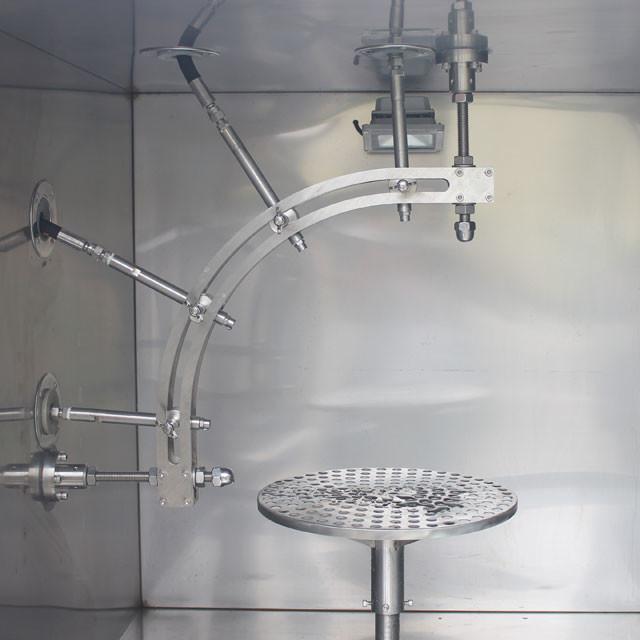

This product uses the scientific design makes the device capable of realistic simulation drip, water spray, splashing water, environmental, water and so on. Into the overall control system and the use of inverter technology, making the rotation angle of rainfall in the test frame, spray angle and swing the pendulum swinging spray volume can automatically adjust the frequency.
Technical Specification:
| Model | SM-IPX9K-1000 | |
| Testing room size | 1000(W)*1080(H)*1050(D) | |
| External size | 1500(W)*1950(H)*1250(D) | |
| Power | 2.5(KW) | |
| Performance index | Test bench area | 400mm |
| Water surface temperature | 80±5.0℃ | |
| Flow | 14~16L/min | |
| Pressure | 8000~10000kpa | |
| Angle | The nozzles are distributed at 0°, 30°, 60°, 90°counter clockwise | |
| Rotating speed | 1~20r/min can also be used for speed regulation without joints | |
| Operation Control System | Controller | SANWOOD SH-5500 controller |
| Time controller | Imported programmable time computer integrated controller | |
| Water pressure control | Electromagnetic flowmeter | |
| Observation | Large area visualization toughened glass door | |
| Water supply system | Water tank, booster pump | |
| Power supply | AC380V TN-S | |
| Safety protection | Leakage, short circuit, motor overheating | |
