Xenon Aging Testing Machine Climate Test Chamber

Xenon Aging Testing Machine Climate Test Chamber for Colour Fastness To Artificial Light Accelerated

Bench-top Xenon lamp aging test chamber Characters

◆The test procedures of Bench-top Xenon lamp aging test chamber can be programmed freely; and upto 16 predetermined procedures can be saved in one time. Every procedureincludes up to 10 segments setting data.
◆Bench-top Xenon accelerated aging test chamber Can set the cumulative energy (total irradiance energy)obtained by sample to finish a testprocedure.
◆ With spray function, can set spray time and sprayinterval time.
◆The xenon light source correspond with internationalstandards; ensure reproducibility and comparability of testing results.
◆ Irradiance energy can be accurately controlled.The "Sun Eye" control system can automaticallycompensate the change of light intensity caused by ageing or other factors.
◆ Users can easily calibrate and adjust the irradiance orthe blackboard temperature by themselves.
◆ With High precision Pt100 Temperaturesensor. Blackboard temperature is auto-controlled during the whole process
◆ Alarm function for protection:Over temperature, over heating load,bigerror for irradiance, auto shut-down protection when opening door.
◆ Touch screen and user-friendly operation interface allowoperator to set the test parameters and monitor all the test processeasily.

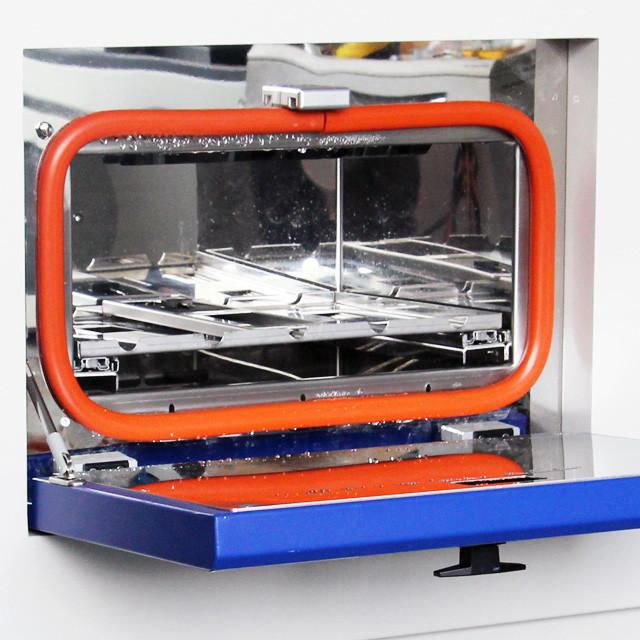

◆ Specimen mounting and evaluation is fast and easy Withunique slide-out specimen tray

◆ Real-time data can be collected and recorded. Theincidental USB connector allow users to copy the test data into a USB drive,achieving unattended operation.

Bench-top Xenon lamp aging test chamber Main Technical Parameters

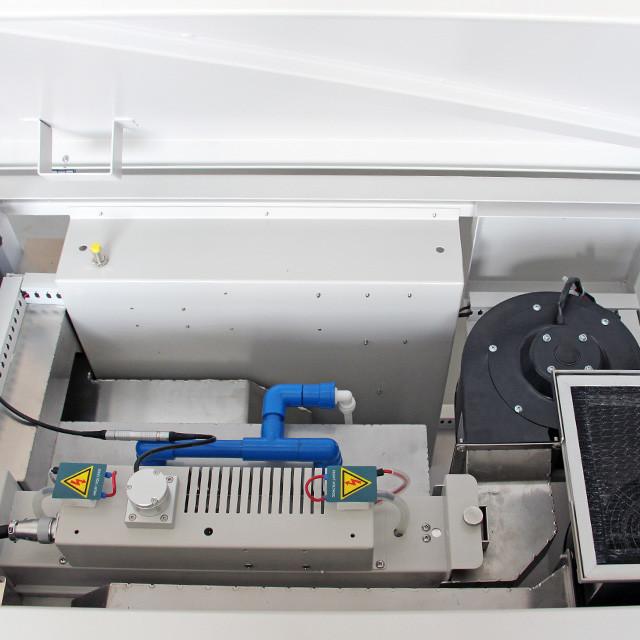

■ Xenon Lamp:one 1.8KW xenon lamp (imported from America or Chinese lamp)

■ Fliter:Daylight filter (Also can choose extended UV filter orwindow glass filter)

■ Lamp Lifetime:Near 1,500 hours

■ Exposure Area:1,000  cm2  (can put 9 standard samples150×70mm)

Chinese lamp:30W/m2～100W/m2(300nm～400nm)or 0.3 W/m2～0.8 W/m2(@ 340nm)or 0.5 W/m2～1.5 W/m2(@ 420nm)

American lamp:50W/m2～120W/m2(300nm～400nm)or 0.3 W/m2～1.0 W/m2(@ 340nm)or 0.5 W/m2～1.8 W/m2(@ 420nm)

■ AdjustableBlack Board Temperature Range:RT+30℃～90℃(Depends on environment temperature andsetting irradiance value)

■ Controllingirradiance point:340nm or 420nm or 300nm～400nm(show at the same time)

■ InteriorMaterial of Chamber:Stainless steel -SUS 304 material

■ ExteriorMaterial of Chamber:Powder coating

■ Overall Size:925×600×1050mm(L×W×H)

■ NetWeight:140KG(180KG Gross weight)

■ Power Supply:220V 50/60HZ；Max. Current 16A；Max.Power 2.6 KW
