SUS304 Rain Test Chamber IPX5 IPX6 Water Flushing Testing Machine
EN60529 IPX56 Rain Test Chamber IPX5 IPX6 Water Flushing tests

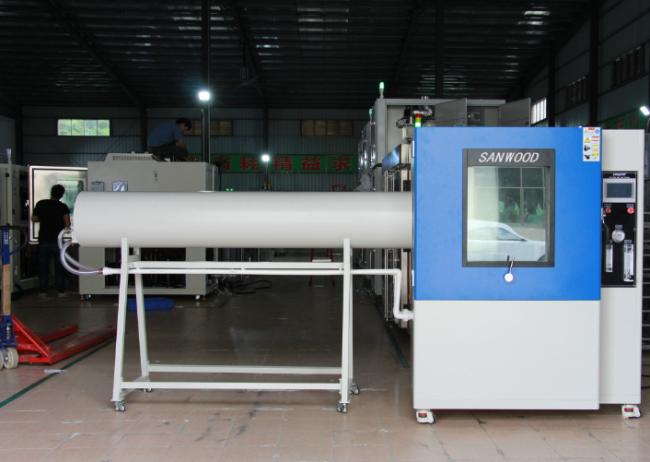

Sanwood Rain Test Chamber SM-IPX56-1000 is manufactured according to standard of IEC60529 IPX5, IPX6 test; GB4208 IPX5/6 requirement to test the water-proof performance of the "waterproof" appliances and electrical products etc.
Rain test chamber SM-IPX56-1000 Feature
1. The test chamber can be used to do the IPX5, IPX6 tests.
2. The structure of the test chamber is stainless steel, and main components are well-known brands such as Schneider, Fuji, Mitsubishi, etc., to ensure long-term stable, safe and reliable operation;
3. The control system has friendly HMI and easy to operate; automatically control IPX5, IPX6 flushing tests

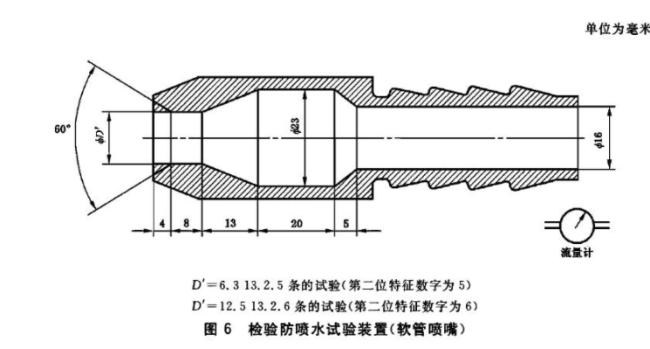

4. Test methods IPX5 water flushing test: flushing nozzle 6.3mm inner diameter; water flow 12.5L/min (750L/h); Distance between flushing nozzle to specimen is 2.5m ~ 3.0m. Test time is around 1m2/min (specimen surface area) and 3 mins at least.
5. Test method: IPX6 water flushing test: flushing nozzle 12.5mm inner diameter; water flow 100L/min; Distance between flushing nozzle to specimen is 2.5m ~ 3.0m. Test time is around 1m2/min (specimen surface area) and 3 mins at least.
6. chamber structure assure the test water to be reused at the piping sytem.
7. IPX5 and IPX6 flushing testing path design as below image.
Rain test Chamber SM-IPX56-1000 Technical Specification
| Model | SM-IPX56-1000 | |
| Testing room Size | 1000(W)*1000(H)*1000(D) | |
| External Size | 3950(W)*1800(H)*1200(D) (2.5m pipeline is detachable ) | |
| Power | 2.5(KW) | |
| Performance Index | IPX5 Nozzle diameter | 6.3mm |
| IPX5 water flow | 12.5L/min | |
| IPX6 Nozzle diameter | 12.5mm | |
| IPX5 water flow | 100L/min | |
| Flushing distance | 2.5m ~ 3m | |
| Swing amplitude | ±15° | |
| Rotating speed | 1~10r/min | |
| Operation Control System | Controller | SANWOOD touch screen controller |
| Time controller | Imported programmable time computer integrated controller | |
| Water pressure control | Manual regulator flowmeter (option electromagnetic flow meter) | |
| Water supply system | Water tank, booster pump | |
| Power supply | AC380V 50Hz 3 phase | |
| Safety protection | Leakage, short circuit, motor overheating | |
Customized models and sizes are available as well.
※Please consult the sales for specific technical parameters, SANWOOD reserves the right of explanation.
