Iron Materials Fence Welding Machine For Highway / Railway Fence 380V
Price:
10000US$
MOQ:
1set
Delivery Time:
25days
Brand:
JG
Product Description
3-6mm Iron Materials Wire Fence Mesh Welding Machine / Welded Mesh Sheet Machine
Description
Feeding material

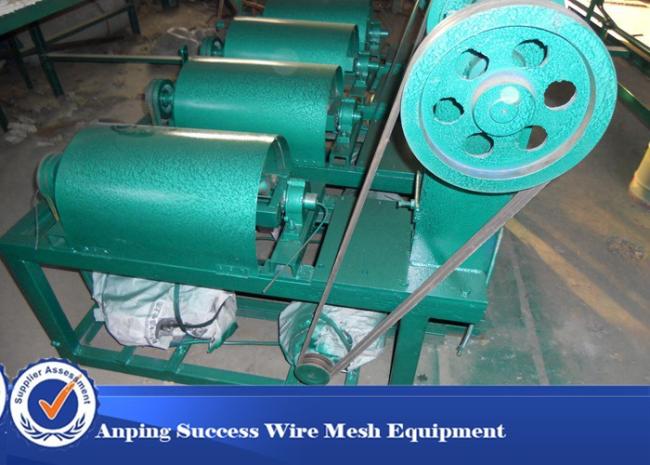

1. The warp wire and weft wire are straightened and cutted from coil wire material ,realized by auto straightening and cutting machine.
2. The warp wire are placed on a corresponding wire penetrating mold by worker, and the weft wire will be automatic falling down one by one ,from the weft wire system
Application
Fence mesh (highway and railway fence [our company provides technology of fence plastic dipping]), fence mesh, floor pouring top mesh
Specifications
| Welding Wire Diameter | ￠3—￠6(MM) |
| Welding Aperture | 50*50-300*300(MM) |
| Welding Breadth | 2500(MM) |
| Warp Quantity (Welding Spot) | 48 |
| Welding Rate | 60(times/minute) |
| Nominal Voltage | 380V |
| Nominal Power | 750KVA |
| Overall Dimensions (m) | 6*3.2*1.8(M) |
| Machine Weight | 4.2T |
