LED Neon Flex Strip suitable for home decor commercial signage and architectural lighting with waterproof IP65 protection rating

Red Jacket 12V Mini LED Neon Flex — Waterproof Home & Commercial Décor
Red Jacket 12V Mini LED Neon Flex is the modern, low-voltage replacement for traditional glass neon. Instead of gas-filled glass tubes and high-voltage transformers, it uses high-brightness SMD2835 LEDs sealed inside a flexible eco-PVC jacket — durable, shatterproof, lightweight and easy to install for home décor, bars, retail signage, architectural outlines and event backdrops.
Detailed Product Description
Traditional glass neon looks beautiful but is fragile, power-hungry and difficult to transport or customize. Vasten’s Red Jacket mini neon flex solves that with a 12V DC low-voltage architecture: safe to touch, cool-running, and simple enough for standard installers or DIY users with basic low-voltage knowledge.
The outer housing is constructed with eco-friendly, anti-UV PVC, formulated to resist yellowing and brittleness under indoor lighting and covered/semi-outdoor conditions. The red jacket also gives the product a strong daytime color identity — even when unlit, the tube clearly reads as “red neon” rather than a plain white strip.
Inside the jacket, the LED layout uses 108 pcs SMD2835 per meter​ for continuous linear output. A dedicated lighting/diffuser layer improves light transmission, while the side-view internal structure​ distributes the LEDs evenly along the optic channel. The result is uniform brightness, soft visual comfort, and no harsh LED dots or dark spots when viewed from the front or side.
Because the flex is extra-thin and lightweight, it bends smoothly into scripts, logos, hearts, arrows, building edges, shelf trims and decorative shapes. The recommended bend direction is horizontal, with a minimum bend diameter of approx. 4cm, so it follows curves without kinking the FPCB or crushing the jacket.

Installation is designed for speed:
Cut only at the marked cut lines
12V mini version cuts every 3 LEDs / 2.77cm
Reconnect with nylon connectors, splice pins, end caps or heat-shrink accessories
For outdoor or damp locations, all cut points and joints must be resealed with neutral-cure silicone/waterproof glue to keep the IP65 rating
The strip runs about 8W/m, making it energy-efficient for long runs in bedrooms, counters, sign boxes and façade trims. LEDs and key components are double-protected to reduce single-point failure, and the sealed PVC construction removes the glass-breakage risk common with classic neon.
Waterproof & Usage Notes

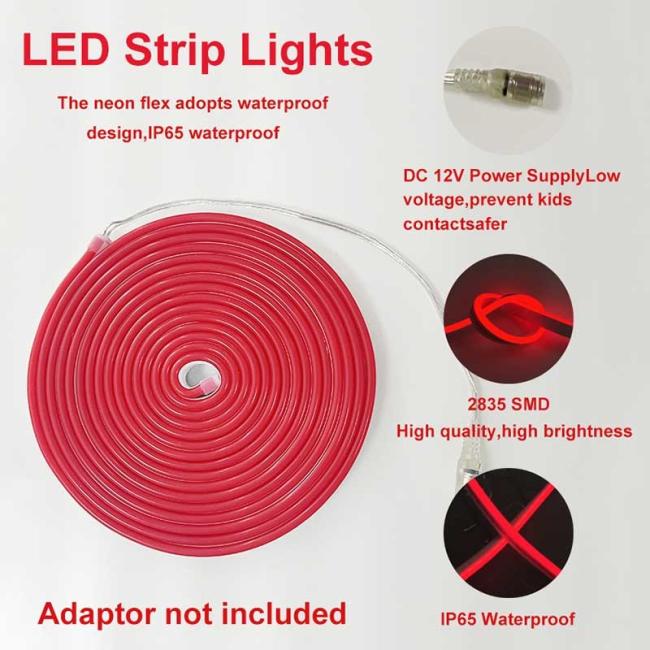

Standard rating: IP65​ — dust-tight and resistant to splashing, humidity and low-pressure water jets.
Best suited for:
Indoor home décor: bedroom walls, headboard glow, gaming desk, kitchen shelf, TV cove
Commercial interiors: bar counter, club trim, salon branding, office feature wall
Covered/semi-outdoor: storefront canopy, sign box, balcony edge, walkway under shelter
Not recommended without upgrading:
Direct rain exposure
Ground-level outdoor runs
Coastal or salt-spray areas
Long-term submerged use
→ For those cases, use Vasten silicone co-extruded IP66/IP67/IP68 neon flex

Key Advantages vs Glass Neon
Low voltage safety:​ 12V DC instead of high-voltage glass tubes
Shatterproof:​ PVC jacket survives transport, handling and minor impact
Flexible shaping:​ bend to 4cm diameter, cut to project length
Uniform glow:​ side-view optic design, no visible dots
Easy install:​ clips, VHB tape or aluminum channel; connectors for rejoin
Low maintenance:​ no gas refill, no electrode replacement
Energy saving:​ ~8W/m vs traditional neon power draw
Specifications — Red Jacket 12V Mini

Specification:

Product Model:	TA-CS-R2835R-24V	TA-CS-R2835R-12V
LED Type:	SMD2835	SMD2835
Material:	Eco PVC	Eco PVC
Working Voltage:	24V DC	12V DC
Power Consumption:	8W/M	8W/M
LED QTY per meter:	108pcs	108pcs
Avaliable color	Red, Green, Blue, Orange, Yellow, White, Pink
Min. Cutting Unit:	6LEDs	3 LEDs
Min. Cutting Length:	2.18''/5.54cm	1.09''/2.77cm
Max Length:	65.62'/20m	32.8'/10m
Protection Rating:	IP65	IP65
Min. Bending:	Dia 4cm	Dia 4cm
Bending Direction:	Horizontally	Horizontally
Ambient Temp.:	-30℃ to +45℃	-30℃ to +45℃

What are the advantages of 12V LED neon flex?

1. Adopts 108pcs high brightness SMD2835

2. LED and components double protected, not unit failure

3. Adopts first-class eco-friendly UV-resistant PVC material

4. Extra thin, light weight, more soft to bend, high brightness, uniform light, no LED dot or dark spot

5. Easy to be installed, can be cut and reconnected (connection accessories available)

6. Protection Rating IP65 (All joints should be sealed by glue when installation)

Features compared with traditional class neon lights:
-Super Brightness
-60000 hour life
-More durable and flexible
-Minimum bending radius: 4cm
-Flexible cut length, easy for making up different characters, patterns and forms
-High safety
-Easy for transportation and installation

Accessories

Applications & Installations:

* Bedroom Light
* Garden Light
* Dining light
* Accent Light
* Bar Light
* Club
* counter Light
* office
