Decorative Architecture Punching Sheet Metal Carbon Steel With 0.8mm - 25mm Hole

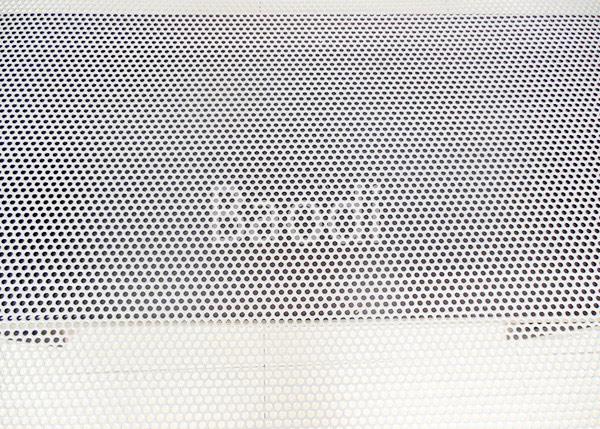

Punching Sheet Metal With Round Holes For Decorative Architecture
|
1. Materials: Stainless Steel & Carbon Steel & Aluminum |
|
2. Hole Shapes: Round hole & Square hole & Slotted hole / Oblong hole & Hexagonal hole |
|
3. Perforated Screen is also known as perforated metal, perforated plate, or perforated sheet. |
|
4. It's a punched metal sheet with holes, such as round holes, square holes and slotted holes. |
Factors for quotation
- Material
- Sheet Thickness
- Hole Shape
- Hole Arrangement
- Open Area / Hole Pitch
- Margin Leaving
- Sheet Length
- Sheet Width
Perforated Screen has been utilized across a variety of industries:
|
Mining |
Refining |
Security |
|
Acoustic |
Environmental |
Pharmaceutical |
► Chemical — Filters, centrifuges, drying machine baskets, battery separator plates, water screens, gas purifiers, liquid gas burning tubes, mine cages, coal washing, etc.
► Food and beverage — Beehive construction, grain dryers, wine vats, fish farming, silo ventilation, sorting machines, fruit and vegetable juice presses, cheese molds, baking trays, coffee screens, etc.
► Architectural — Infill panels, sunshade, cladding, column covers, metal signage, site amenities, fencing screens, etc.
► Automotive — Air filters, oil filters, silencer tubes, radiator grilles, running boards, flooring, motorcycle silencers, ventilation grids, tractor engine ventilation, etc.
► Construction — Ceiling noise protection, acoustic panels, stair treads, pipe guards, ventilation grilles, sun protection slats, facades, sign boards, etc.
| Sheet Material | Sheet Thickness (mm ) | Hole Dia.(mm) | Pitch (mm) | Sheet Width(m) | Sheet Length(m) | Porosity (%) | Weight (kg/m2) |
| Carbon Steel Punching Sheet Metal | 0.5 | 1 | 1 | Maximum Sheet Width 1.5m | Maximum Sheet Length 3m | 19.6 | 3.14 |
| 0.55 | 1.1 | 2.2 | 22.67 | 3.411 | |||
| 0.55 | 1.5 | 2.8 | 26.03 | 3.268 | |||
| 0.8 | 1.5 | 1.5 | 19.6 | 5 | |||
| 0.8 | 2 | 3.4 | 30.78 | 4.465 | |||
| 1.5 | 2 | 2 | 19.6 | 9.4 | |||
| 1.5 | 5 | 8.0 | 35.39 | 7.843 | |||
| 3 | 5 | 16 | 19.6 | 18.8 | |||
| Stainless Steel Punching Sheet Metal | 0.5 | 1 | 1 | Maximum Sheet Width 1.5m | Maximum Sheet Length 3m | 19.6 | 3.14 |
| 0.8 | 1.5 | 1.5 | 19.6 | 5 | |||
| 1 | 2 | 2 | 19.6 | 6.28 | |||
| 2 | 5 | 16 | 19.6 | 6.28 | |||
| Aluminum Punching Sheet Metal | 0.5 | 1 | 1 | Maximum width 1.5m | Maximum lenght 3m | 19.6 | 1.08 |
| 0.8 | 3 | 3 | 19.6 | 1.72 | |||
| 1.6 | 2 | 2 | 19.6 | 3.24 | |||
| 3 | 4 | 16 | 19.6 | 4.23 |
Packing: With plastic film inside, and pallet outside.
