Hot Dipped Galvanised Wire Fencing Hinged Knot Field Fence 330 Feet Length
Price:
negotiated
MOQ:
100 rolls
Delivery Time:
15-30 days
Brand:
Baodi
Product Description

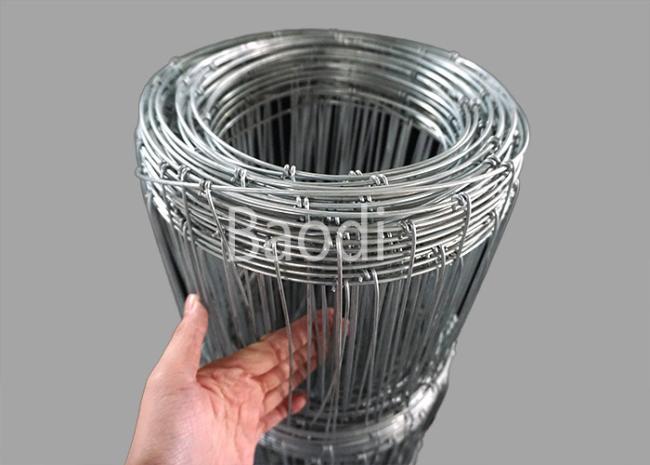

Hot Dipped Galvanized Hinged Knot Field Fence 330 Feet Length
Introduction:
| Material | carbon iron wire | Surface Treatment | Hot dipped galvanized or electro galvanized. |
| Mesh Opening | 6" / 9" / 12" | Inner Wire Diameter | 1.8mm - 2.5mm |
| Top & Bottom Wire Dia. | 2mm - 3.2mm | Roll Length | 50m or 100m as standard |
| Fence Height | 32" to 74" | Packing | packed in rolls with plastic film. |
Different Surface Treatment:
1. Class A: Hot dipped galvanized (zinc coated: 220-260g/m2)
2. Class B: Hot dipped galvanized (zinc coated:60-70g/m2)
3. Class C: Electro galvanized (zinc coated: 15-20g/m2)
Feature of woven filed fence:
- Cost Effective
- Good Corrosion and rust resistance
- High tensile strength
- Easily installation
- Long service life
- Easily modified to suit requirements
Specification List of Field Fence
| No. | Inner Wire Guage | Top & Bottom Wire Guage | Wire Spacing | Fence Height | Roll Length | Roll Weight |
| 1 | 9 | 9 | 6" | 47" | 330' | 396lbs |
| 2 | 9 | 9 | 12" | 47" | 330' | 295lbs |
| 3 | 11 | 9 | 6" | 32" | 330' | 210lbs |
| 4 | 11 | 9 | 6" | 39" | 330' | 241lbs |
| 5 | 11 | 9 | 6" | 47" | 330' | 290lbs |
| 6 | 11 | 9 | 12" | 39" | 330' | 185lbs |
| 7 | 11 | 9 | 12" | 47" | 330' | 208lbs |
| 8 | 12.5 | 10 | 6" | 26" | 330' | 128lbs |
| 9 | 12.5 | 10 | 6" | 32" | 330' | 148lbs |
| 10 | 12.5 | 10 | 6" | 39" | 330' | 169lbs |
| 11 | 12.5 | 10 | 6" | 47" | 330' | 192lbs |
| 12 | 12.5 | 10 | 12" | 32" | 330' | 116lbs |
| 13 | 12.5 | 10 | 12" | 39" | 330' | 131lbs |
| 14 | 12.5 | 10 | 12" | 47" | 330' | 146lbs |
| 15 | 14.5 | 11 | 6" | 32" | 330' | 90lbs |
| 16 | 14.5 | 11 | 6" | 39" | 330' | 102lbs |
| 17 | 14.5 | 12.5 | 6" | 39" | 330' | 98lbs |
| 18 | 14.5 | 12.5 | 6" | 47" | 330' | 111lbs |
| 19 | 12.5 | 10.5 | 6" | 39" | 330' | 174lbs |
| 20 | 12.5 | 10.5 | 6" | 47" | 330' | 198lbs |
| 21 | 11 | 9 | 9" | 42" | 330' | 193lbs |
| 22 | 11 | 9 | 9" | 48" | 330' | 217lbs |
| 23 | 13 | 10.5 | 6" | 39" | 330' | 151lbs |
| 24 | 13 | 10.5 | 6" | 47" | 330' | 173lbs |
