Stainless Steel 304 316L Perforated Mesh Round Hole 1m X 2m
Stainless Steel 304 316L Round Hole Perforated Metal Mesh
Description
The perforated metal mesh is stamped from the original steel plate.
Beautiful appearance, widely used in the protection of speakers, bridges, pedals and various mechanical equipment.
Steel plate materials mainly include steel plate, cold rolled plate, hot rolled plate, galvanized steel plate, alloy steel plate, etc.
It is mainly used in high-end residence, villa, private swimming pool, courtyard lawn, stadium, resort and other fields.
We have advanced numerical control equipment, and the products can be customized as customers's demand.
Classification of Perforated Mesh:
Classification by thickness: (1) thin plate (2) medium plate (3) thick plate (4) extra thick plate
Classification by material: (1) hot rolled steel plate (2) cold rolled steel plate material (3) stainless steel plate 2 nickel, 4 nickel, 302, 304, 316, 304L and 316L
Classification by hole: diamond, square, round, triangle, fish phosphorus hole, irregular hole, etc.
Features: the mesh surface is flat, smooth, beautiful, firm and durable, and has a wide range of applications.
Specification: the thickness of coiled plate is 0.2mm - 1mm, the length is 1m-20m, and the hole diameter is 0.8mm - 20mm; Plate thickness 0.3mm - 30mm, min
Specifications
| Plate material | Thickness (mm ) | Hole (mm) | Pitch (mm) | Sheet Width(m) | Sheet Length(m) | Porosity (%) | Plate Weight (kg/m2) |
| Steel sheet | 0.5mm | 1mm | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.55mm | 1.1mm | 2.2 | 1 | 2 | 22.67 | 3.411 | |
| 0.55mm | 1.5mm | 2.8 | 1 | 2 | 26.03 | 3.268 | |
| 0.8mm | 1.5mm | 1.5 | 1 | 2 | 19.6 | 5 | |
| 0.8mm | 2mm | 3.4 | 1 | 2 | 30.78 | 4.465 | |
| 1.5mm | 2mm | 2 | 1 | 2 | 19.6 | 9.4 | |
| 1.5mm | 5mm | 8.0 | 1 | 2 | 35.39 | 7.843 | |
| 3mm | 5mm | 16 | 1 | 2 | 19.6 | 18.8 | |
| Stainless steel | 0.5mm | 1mm | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.8mm | 1.5mm | 1.5 | 1 | 2 | 19.6 | 5 | |
| 1mm | 2mm | 2 | 1 | 2 | 19.6 | 6.28 | |
| 2mm | 5mm | 16 | 1 | 2 | 19.6 | 6.28 | |
| Aluminum sheet | 0.5mm | 1mm | 1 | 1 | 2 | 19.6 | 1.08 |
| 0.8mm | 3mm | 3 | 1 | 2 | 19.6 | 1.72 | |
| 1.6mm | 2mm | 2 | 1 | 2 | 19.6 | 3.24 | |
| 3mm | 4mm | 16 | 1 | 2 | 19.6 | 4.23 |

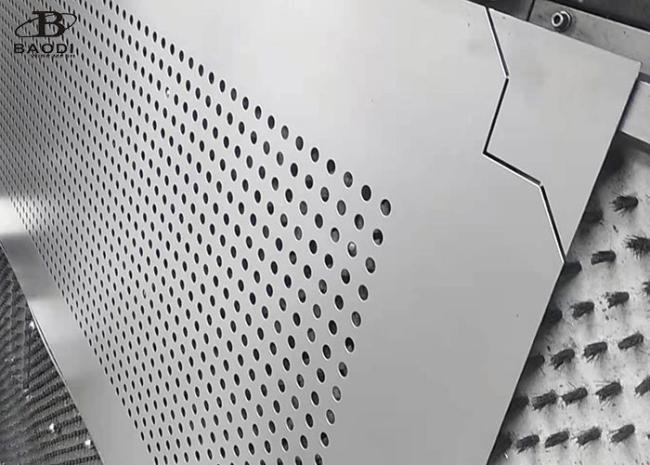

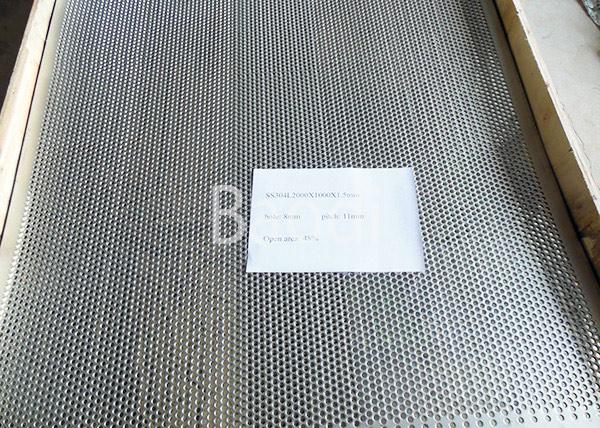

Product Show
Variety Patterns can be customized
