Aluminum Woven Screen Lock Crimp Wire Mesh Anti Slip
Aluminum Woven Wire Screen Crimped Wire Mesh
Crimped Wire Mesh Description
Pattern: Square or rectangular grid
Process: Weaving after crimped
| Crimped Wire Mesh | |
| Material | Low carbon steel wire, aluminum wire, stainless steel wire |
| Mesh/inch | 2mesh - 18mesh |
| Wire Diamter | 0.4-1.6mm |
| Roll Height | 0.9m-1.5m |

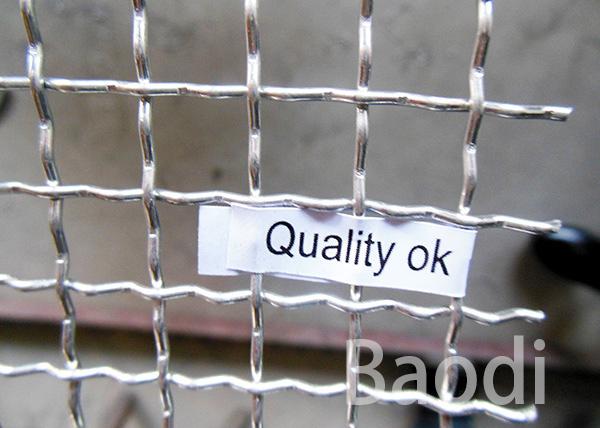

Aluminum Crimped Wire Mesh is made by crimped mesh machine, it's available in carbon steel, stainless steel alloys and aluminum alloys.
Manufactured in a wide variety of wire diameters, crimped wire mesh is produced in a square or rectangular mesh.
it's a kind of woven wire cloth. Crimped wire mesh is available in roll or flat panel form.
1.Application:
Crimped wire mesh is used as fence or filters in a lot of industries. Heavy Duty Crimped wire mesh are also named Quarry Mesh, it is mostly used as screen in mining,coal factory,construction and other industries.
2.Supply form: in rolls and panels.1mX15m,1.5mX15m,2.0mX20m.etc.
3.Type of weaving:
crimped before weave,double-direction separate,ripples flections,tight lock flections,flattop flections,double-direction flections,list-direction separate ripples flections.
Characteristic:
- firm structure
- Accurate & uniform apertures
- good strength
- economy cost
- High temperature resisting
- acid resisting
- alkali resisting
- corrosion resisting
Specification List
| Crimped Wire Mesh | ||
| Mesh/ Inch | Wire Diameter mm | Weight Kg/m2 |
| 4 | 1.25 | 3.2 |
| 5 | 0.65 | 1 |
| 5 | 0.88 | 1.9 |
| 6 | 0.55 | 0.85 |
| 6 | 0.7 | 1.5 |
| 6 | 1.1 | 3.25 |
| 8 | 0.43 | 0.75 |
| 8 | 0.6 | 1.3 |
| 8 | 0.65 | 1.7 |
| 8 | 1.0 | 3.7 |
| 10 | 0.4 | 0.75 |
| 10 | 0.6 | 1.5 |
| 10 | 0.85 | 3.75 |
| 12 | 0.4 | 0.85 |
| 12 | 0.5 | 1.5 |
| 12 | 0.75 | 3.3 |
| 14 | 0.45 | 1.4 |
| 14 | 0.4 | 1.1 |
| 16 | 0.4 | 1.1 |
| 16 | 0.35 | 1 |
| 18 | 0.4 | 1.4 |
NOTE:
The definition of mesh is the number of openings per linear inch.
The term opening represents the clear opening between two parallel wires.
FAQ:
1. I'm interested in your crimped wire mesh, can i get free sample?
Yes, we could supply samples for free, but customer should pay the express fee.
2. Could you make a special crimped wire mesh for me?
Yes, it can be made as your require.
3. How can i get a competitive price quickly?
The quick quotation depends on the detailed dimensions you supply.
