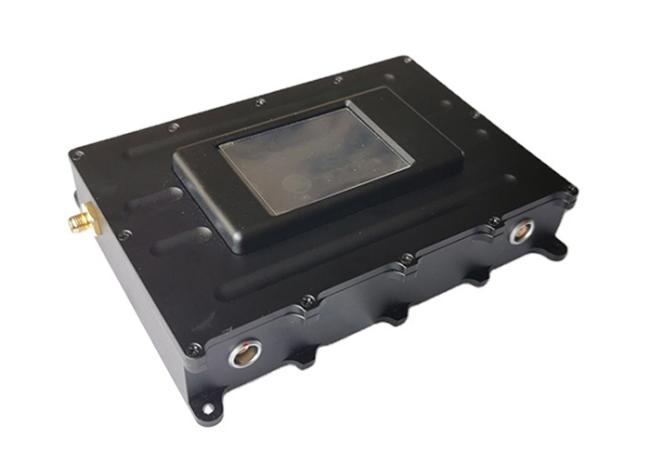

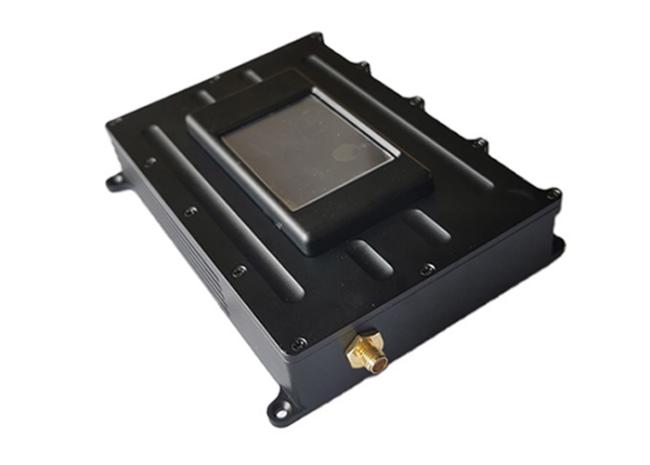

40km LOS HD UAV Video Sender with 2 Watt COFDM AV Transmitter 300MHz~999MHz
60km LOS HD UAV Video Sender with 2 Watt COFDM AV Transmitter 300MHz~999MHz
Transmitter Specification:
| DC Input | DC11V~DC16V |
| Working Current | ≤1.1A@DC12.5V |
| Frequency range Output | 250MHz-320MHz330MHz- 450MHz / 1000MHz --4400MHz,or can be customized according to customer's request. |
| Modulation | COFDM |
| RF bandwidth | 2/4/6/8MHz(adjustable) |
| Power output | 1-3W(adjustable),in 1dB step |
| SHG | >52dBc |
| Encryption | AES128/256bits |
| Constellation | QPSK,16QAM,64QAM |
| FEC | 1/2,2/3,3/4,5/6, 7/8 |
| Guard Interval | 1/32,1/16,1/8,1/4 |
| Carrier | 2K |
| Flatness | Full band≤2dB,8MHz≤0.5dB |
| CNR(weighting) | 58dB |
| Sloping field SNR(unweighted) | ≥50dB |
| Balanced audio input range | Vmax=±15V |
| Unbalanced audio input range | Vmax=3Vpp |
| HD interface | AHD or HDM-I/SDI |
| Data interface | RS232 up to 115200bps |
| Encryption | AES 128/265 bit / ALLTECH Basic scrambling |
| Standard | SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292, SMPTE 259M-C SMPTE 272M SMPTE 299M |
| Input range | 800±80(mV) |
| HDCP protocol | Yes |
| AV rate | 64, 96,112,128,160,192,224,256,320,384Kbps(adjustable) |
| Audio encoding mode | MPEG1 Layer2 |
| CBER | <2.0E-4 |
| Video resolution | Maximum 1920×1080P/I@ 60P |
| Video coding | H.264 |
| Video rate | 500kbps-16.68Mbps(autoadaptation) |
| Format | YCbCr4:2:2 |
| OperatingTemperature | -25℃~55℃ |
| Storage Temperature | -40℃~70℃ |
| Distance |
20-40km LOS distance(on air) 1km NLOS distance(Ground to ground) |
| Appearance characteristics | |
| Dimension | 132*90*26mm |
| Weight |
420g |
