200km UHF / VHF COFDM Wireless Transmitter 100 Watt Waterproof for Maritime Affairs
UHF / VHF RF Power Wireless AV Video Sender NLOS CCTV Wireless Transmitter COFDM Modulation
Long Range AV Sender Description:
KP-CM30H/CM50H/CM80H is big RF power device special design for vehicle NLOS mobile digital image transmisson. Using standard 19 inch 2U dimension appearance that very conveniently for car,boat fixed installation. Support one channel image and two audio channels. Its large rf power that depends on its long range distance transmission.
Suitable for Car to car, boat to boat, vehicle to fixed station, boat to fixed station, helicopter to fixed station Which can be also as a repeater, can up to 150km LOS and 50km NLOS distance if work with omni-directional antenna.
High RF Transmitter Features:
- RF power 30-50W NLOS distance up to 50km NLOS distance;
- Use in rescue, reconnaissance, field operations and other emergency communication system;
- High definition and good image effects;
- Support high speed mobile transmission, max speed 450km/h.

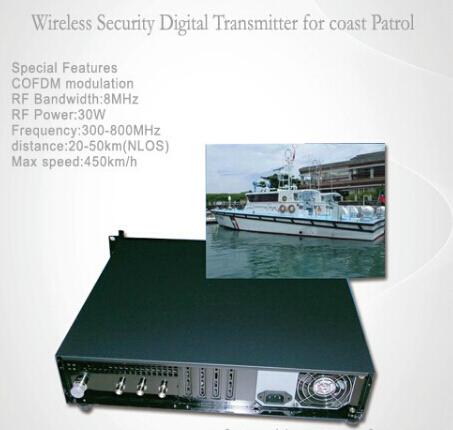

There are two types of the device for your choice, one is 2U/1U case, another one is waterproof case. Pictures as following:
Specifications:
| RF Indexs: | |
| Modulation | COFDM |
| Frequency | 200-900MHz(optional) |
| RF Power | 30~50W (adjustable) |
| Power Supply | DC12V 7.8A / AC220V 5A |
| Frequency stability | 0.0005%(standard) |
| Impedance | 50Ω |
| Phase Noise @10KHz | -75dBc |
| Video output | U band 200-900MHz(optional) "L-16" |
| Audio Index: | |
| Interface | BNC |
| Audio output | 600Ω balance/0.5v unbalance |
| De-emphasis | 75us/50us |
| Frequency response | 50Hz to 15KHz(+/-0.5dB) |
| carrier frequency | 6.5MHz |
| Distortion | 3% |
| FM Noise | -50dB |
| Video index | |
| Video Output | CVBS; HDMI; SDI |
| Differential gain | 5% |
| Differential phas | 5 |
| SNR | 55dB |
| De-emphasis | CCIR STANDARD PAL |
| Other Index | |
| Work environment | -35~+55°C |
| Humidity | 0.96% |
| Size | 400*230*160mm |
| Weight | 8kg(2U chassis) |
| Receiver System Indicators | |
| Frequency | 200-900MHz(UHF&VHF) |
| Standard | ISO/IEC13818-3 |
| Impedance | 75Ω |
| Bandwidth | 2/4/6/8MHz(optional) |
| Video Output | Analogic AV signal |
| Video Format | 4:3,16:9 |
| Audio Output Frequency Range | 20Hz~20KHz |
| Resolution | Max 720x576 |
| Sound channel mode | dual track |
| Channel mode | mono |
| Input Level | 29~80dBuV |
| Sample frequency | 340MHz |
| Interface | HDMI; CVBS |
| Volume adjustment | 20 levels to adjust |
| Audio output Impedance | 75Ω |
| Video output impedance | 75Ω |
| Video Output Level | 1.0Vp-p BNC |
| Video format | 4:3, 16:9 |
| Videography | DVBTXTETSI/EN300472 |
| Audio output frequency range | 20Hz-20KHz |
| Voltage | 110-240V / DC12-28V |
| Resolution | 720*576 |
| Audio Output Level | 0dBm |
| Temperature | -30~50°C |
| Humidity | 0.96% |
| Weight | 3KG |
| Size | 290*190*100mm (1 U chassis) |
| Packaging Details | |
| Accessories | 2*antennas (customized); 1*adapter; 2*connection line. |
| Style | Paper carton |
| Size | Undetermined |
| Overall Weight | ≥15kg |
