100km UAV Video Transmitter 1080P HD 5W Long Range Wireless AV Transmission
100km UAV Video Transmitter 1080P HD 5W Long Range Wireless AV Transmission
HD digital transmitter Specification:
| Modulation | COFDM |
| DC Input | DC12V |
| Working Current | 0.9A-13A |
| Constellation | QPSK,16QAM,64QAM(optional), QPSK/16QAM/64QAM @ 6/7/8MHz |
| FEC | 1/2,2/3,3/4,5/6, 7/8 |
| Guard Interval | 1/32,1/16,1/8,1/4 |
| Bandwidth | 2/2.5/4/8M(adjustable) |

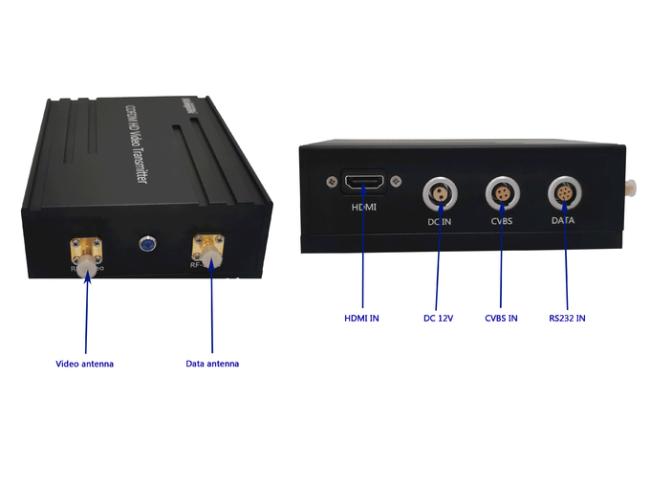

| A/V Interface | HDMI; CVBS |
| Frequency | 300-900MHz(option) |
| Encryption | AES 128 bit / ALLTECH Basic scrambling |
| Flatness |
≤2dB(within full frequency range) , ≤0.5dB (within 8MHz) |
| Carrier | 2K |
| Power Output | 5W (adjustable),in 1dB step |
| CNR | ≥-30dB @ 30dBm power output |
| SHG | >52dBc |
| Video Signal | 1Vp-p@75Ω,NTSC/PAL adaptive |
| CBER | <2.0E-4 |
| Video Compression | MPEG-4 |
| Resolution | 1080P/I, 720P/I |
| Video rate | 15Mbps(MAX) |
| Video Input | 1 line PAL / NTSC analog video |
| RF Interface | SMA |
| Video Format | PAL/NTSC(adjustable) |
| OperatingTemperature | -25°C~55°C |
| Storage Temperature | -40°C~70°C |

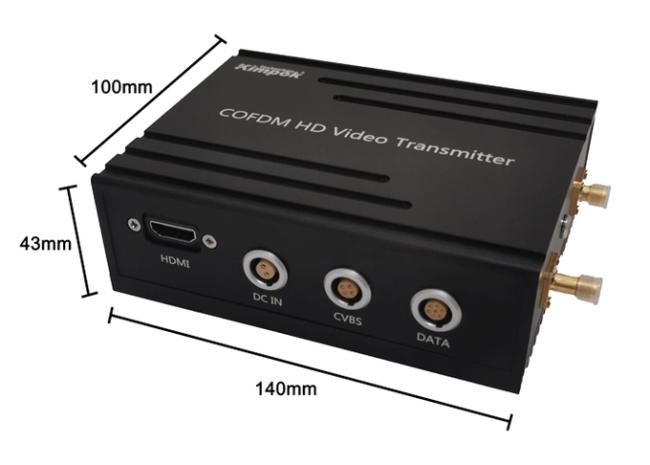

| Size | 140*100*43m |
| Weight | 600g |
FAQ:
Q1: What can I buy from you?
COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.
Q2: Why should I choose you?
Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.
Q3: Do you have a minimum order quantity?
No MOQ limit, 1pc is acceptable.
Q4: What kind of product service can I have?
OEM & ODM service.
Q5: What is the product warranty?
We offer two-year-warranty and lifelong maintenance.
Q6: What is the average lead time?
5-7 working days for regular model, and 20-30 working days for customized model.
Q7: What kinds of payment methods do you accept?
We accept bank transfer, Western Union, PayPal, or cash payment.
Q8: Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.
Our Service:
· One-stop ODM/OEM solution;
· 24-hour technical support;
· Lifelong maintenance (Replacement parts will be charged after a year);
· Provide professional system design and construction;
· You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 2008, we are the source.
