Video and Two-way Communication COFDM Wireless Video Transmitter 450km/h High-speed
Video and Two-way Communication COFDM Wireless Video Transmitter 450km/h High-speed
Description:
KP-WVT10 system is new generation of broadcast-quality good resolution image transmission and walkie-talkie system. It adopts the current leading COFDM modulation technology and relative narrow-band frequency(2/2.5//4/8MHz), it has the strong anti-jamming capability, overcomes the reflection and cover caused by transmission multipath simulation technique and conventional modulation techniques, to realize high-speed photography and near real-time transmit high quality image in NLOS or complicated working conditions.Especial suitable for army training ,fire rescue, marine remote control security application.
Feature:
- COFDM modulation,good stability.
- H.264 video compression,DVD quality
- Video and walkie-talkie transmission;
- Super long range transmit distance.
- Works well in NLOS & fast-moving conditions
- LCD screen shows parameters and working status.
- Dual aerials connectors.
- Low delay
Specifiations:
| Frequency | 138-4400MHz (option),but only 100MHz space for user |
| RF power | 10Watt (adjustable) |
| Power supply | DC11-14.5V/2.7A (aviation plug) |
| Modulation | COFDM 2K QPSK |
| RF Bandwidth | 2/2.5/4/8MHz(adjustable) |
| FEC | 1/2 2/3 3/4 7/8 (option) |
| Guard Interval | 1/32 1/16 1/8 1/4(option) |
| Data Encryption | AES 128/256 Bits |
| Max speed | 450km/h |
| Video input | BNC/RCA |
| Audio input | standard Aviation plug, support two-way intercome |
| Video compression format | H.264 |
| Video Resolution | standard 720P ,1280*720 |
| RF Interface | N (two aerial connectors) |
| Work environment | -40℃~70℃ |
| Transmission Distance | 10-25KM NLOS |
| Case Material Aluminum | black |
| Size | 200*130*60mm |
| Weight | 2.5kg |

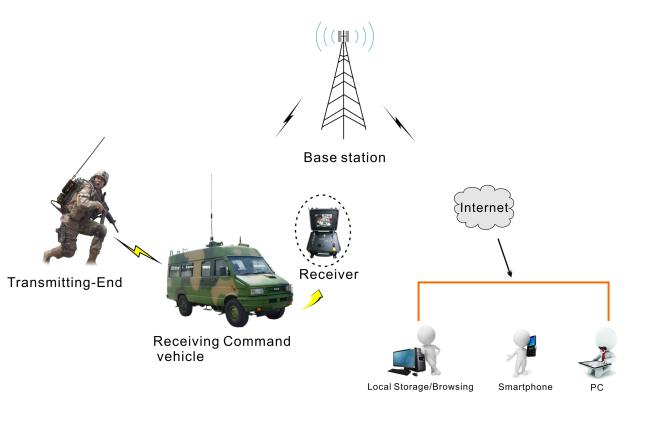

Two-way Communication Transmitter Application:
- Aerial Surveillance
- Marine Surveillance
- Mobile Monitoring Station
- Central Monitoring Station
- Portacam on Tripod/ Patrol Car
- SpyVest
- Robot
