30W Long Range COFDM Video Transmitter Ethernet Mobile Wireless AV Sender H.264
30W Long Range COFDM Video Transmitter Ethernet Mobile Wireless AV Sender H.264
Ethernet Network COFDM Transmitter Description:
FDD-COFDM, using COFDM multi carrier modulation and demodulation technology is a new type of full duplex communciation system used in NLOS mobile transmission application. Supporting non-line of sight distance transmission.It uses transparent IP data to provide a balance and stable high-speed data rate up link(30Mbit/s) and downlink(30Mbit/s).
KP-FDD30W is a high power Network IP radios based on COFDM modulation.It's special designed for Vehicle or Unmanned control vehicle in need for robust video wireless communcation and data control through IP network.
Feature:
- COFDM modulation,FDD technology
- Great transfer rate for uplink and downlink
- Transparent IP Ethernet and serial data sync telecommunication
- 20W rf power for bi-directional video data communication
- Military level 128bit dynamic AES encryption
- RF Narrowband 1/2/4/8MHz available
- Integrated design,efficient heat dissipation,low consumption
- Easy deployment,Simple operation
Specifications:
| Model | KP-FDD30W |
| Power supply | DC28V/6.8A |
| TX output frequency | 675MHz (can be customized 300-3300MHz),step in 1MHz |
| RX output frequency | 715MHz (can be customized 300-3300MHz),step in 1MHz |
| RF bandwidth | 1/2/4/8MHz |
| RF power output | 45dBm |
| Encryption/decryption mode | AES128 bits(user-defined password) |
| Modulation | COFDM 2K |
| Transfer rate | 2x30 Mbit/s uplink and downlink |

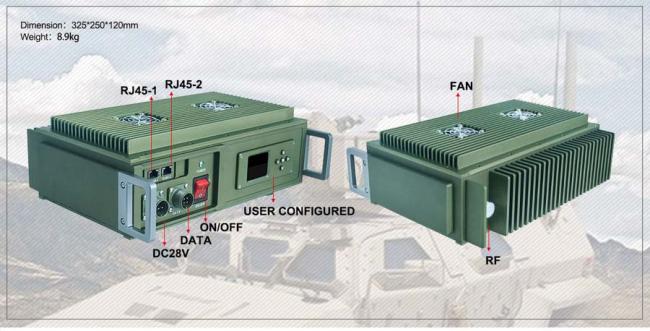

| RF connector | N type *2 |
| Ethernet | Standard RJ45 port *2 |
| Serial port | RS232 serial port |
| Baud rate | 115200bps maximum |
| Two way audio | Aviation plug |
| LCD panel with keypad | Easy to set the related parameters |
| Dimension | 320*210*110mm |
| Weight | 8.7kg |
| Transmit distance | 10-20 km NLOS / 20-40km LOS on ground level |
Our Service:
1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.
Whatever your wireless surveillance application or budget, we can find the right solution for you.
Contact us! We can customize any solution to fit your requirements.
