EE923095 / 923175 Sealed Ball Bearings Small Ball Bearings EE 390095 390200

EE923095/923175

Tapered roller bearings EE923095/923175

Bearing number : EE923095/923175

Size (mm) : 241.3x444.5x101.6

Brand : Monton

Bore Diameter (mm) : 241,3

Outer Diameter (mm) : 444,5

Width (mm) : 101,6

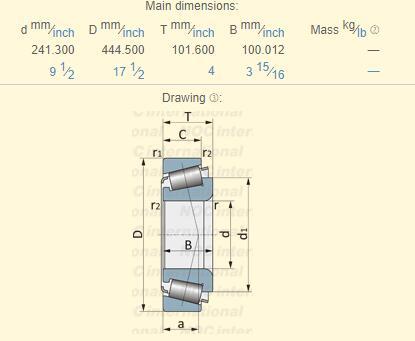

Bearing dimensions and specification in Timken catalogue:

d - 241,3 mm

D - 444,5 mm

T - 101,6 mm

B - 100,012 mm

C - 76,2 mm

R - 6,3 mm

r - 4,8 mm

a - -19,3 mm

Da - 407 mm

db - 277 mm

da - 268 mm

Db - 403 mm

Weight - 62 Kg

Basic static load rating (C0) - 2420 kN

Factor (G1) - 1626,7

Factor (G2) - 136,5

Factor (Cg) - 0,0454

Factor (K) - 1,73

Basic dynamic load rating (C90) - 403

Basic dynamic load rating (Ca90) - 233

Basic dynamic load rating (C1) - 1560 kN

Calculation factor (e) - 0,34

Calculation factor (Y) - 1,78

Tags :  241.3x444.5x101.6

As different row configurations for rollers are required, tapered roller bearings can also be divided to double row tapered roller bearings and four row tapered roller bearings. These bearings have the advantage of combined load capacity in both radial and axial environments. Compared to other bearings of the same size, these tapered roller bearings have a relatively longer working life.

Tapered roller bearings are widely used in automotive, rolling mill, mining, metallurgy, plastics machinery and a host of other industries.
