RA11008UUCC0 Precision Cross Roller Bearing For Harmonic Drive Redeucer
Price:
USD
MOQ:
1
Delivery Time:
7-35 days
Brand:
MONTON
Product Description

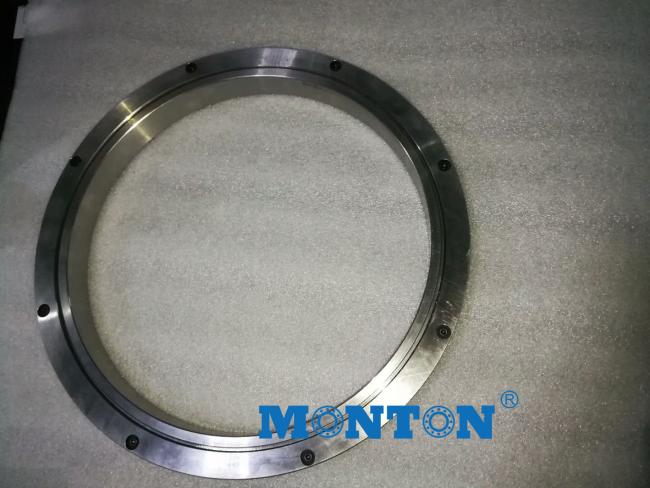

RA11008UUCC0
| shaft diameter | Identification number | Main dimensions | Shoulder height | Basic load rating(radial) | weight | |||||||
| inner ring | outer ring | Roller pitch circle diameter dp | width | Greasing hole | Chamfer | ds | Dh | C | C0 | Kg | ||
| d | D | B B1 | ||||||||||
| (mm) | (mm) | (mm) | (mm) | (mm) | φ | r(min) | kN | kN | ||||
| 110 | RA11008 | 110 | 126 | 117 | 8 | 1 | 0.5 | 113.5 | 120.5 | 7.45 | 15 | 0.15 |
Types and features
RA thin type cross roller bearing (separable outer ring for inner ring rotation),RA series is a kind of small size and light weight cross roller bearing which the wall thickness in thin. It receives heavy loads.
Applications
•Industrial Robotic arm,Reducer drive
•precision Turntable,NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
•Aviation equipment,Military radar etc
