CRBT105A 10*21*5mm Crossed roller bearing for Compact Hand Robot and Surveillance Camera

1. Ultra-Slim and Ultra-Small!

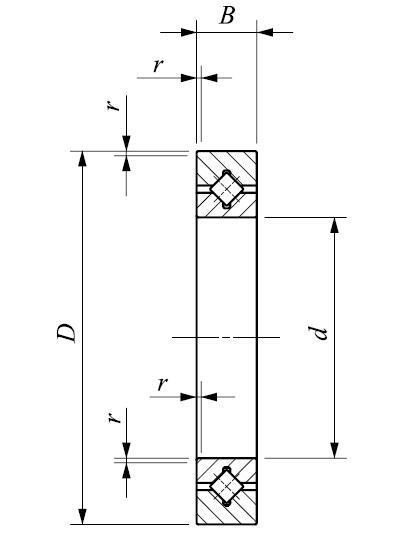

These Crossed Roller Bearings are ultra-slim and small with a 10mm bearing bore, 21mm outside diameter, and 5mm bearing width. The compact size is made possible thanks to technological expertise in miniature bearing production.

2. High Rigidity and a Compact Size!

In Crossed Roller Bearings, the orthogonal array of rollers reduces the cross sectional area of rear-mounted 45° contact angle single-row roller bearings or ball bearings by half, creating a compact structure. Even though they are more compact, the rigidity is 3 to 4 times greater than double-row angular contact ball bearings.

What are Crossed Roller Bearings?

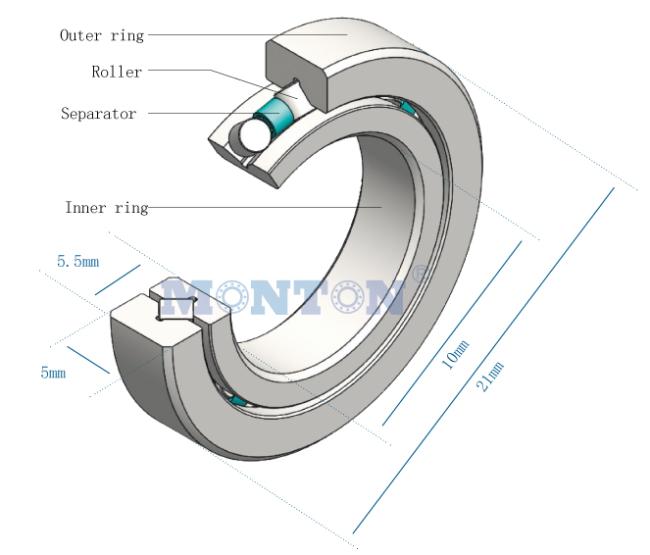

Crossed Roller Bearings are compact bearings with their rollers alternately crossed at right angles to each other between inner

and outer rings. The orthogonal array of the rollers allows the bearing to handle complex loads simultaneously from any direction, which makes assembly possible without needing to worry about load direction.

CRBT105A Usage Examples

Compact Hand Robot

Crossed Roller Bearings feature high rotational accuracy and high rigidity which minimizes deflection, making them ideal for the

swivel parts of hand robots, that require accurate positioning motion.

Compact Surveillance Camera

Crossed Roller Bearings can receive complex loads from various directions, making them ideal bearings for supporting surveillance

cameras which are in constant 24-hour operation.

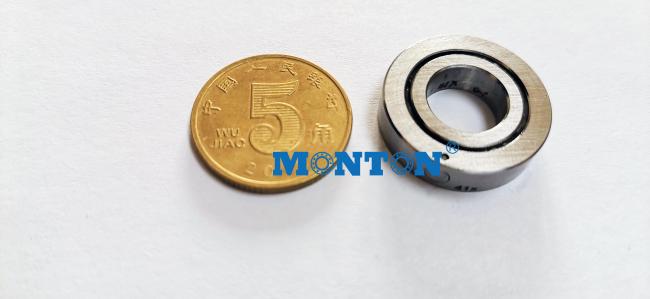

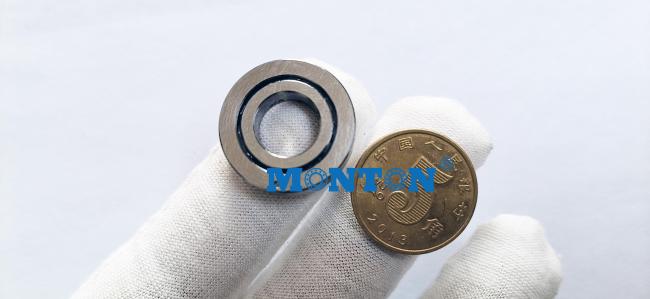

CRBT105A photos
