Beekeeping Equipments Hand Held Sugar Refractometer ATC For Home / Medical

Introduction

A refractometer is an instrument that can measure the concentration of aqueous solution by measuring

it's refractive index.All water based solution can make lightbend.The bending of light increases at a rate

proportional to the increasing solution concentration. The hand-held refractometer is a precise optical

instrument.It is characterized by small volume,light weight,graceful shape and easy to operate.Therefore it

can be used by all sides

Features:

1. With Built-in ATC compensation Range (Automatic Temperature Compensation) from 10°C to 30°C

2. For field use, without having to re-calibrate after changes in ambient working temperature.

3. Soft rubber eye piece for comfortable viewing

4. Equipped with scale measurement which provides direct reading

5. Accurate testing results guaranteed

6. Extremely easy-to-use and calibrate

7. Durable and built to last long

8. Adjustable manual focusing

9. Uses ambient light only which means battery or power source is not required.

10. Cushioned with soft & comfortable non-slip rubber

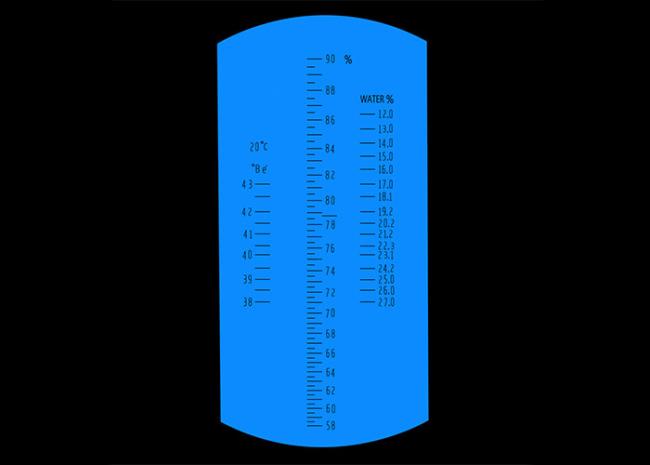

• One SCALE: Brix scale: 58 to 90%Brix;
• Baume Specific Gravity (38 - 43 Be')
• Water Contents (12 - 33%).
• Reference Temperature: 20°C
• ATC(Automatic Temperature Compensation) Compensation Range: 10°C~30°C (50°F~86°F)
• Manual calibration with mini-screw driver provided

3 in 1 Grape & Alcohol Refractometer is mainly designed to test the sugar content in original grape juice

and alcohol-content by volume of the grape wine made from the fermented grape juice and sugar

concentration in the grapes. All you need to do is manufacture a distillate of the liquids to be measured,

and then place the distilled sample on the prism. You can measure the brix & alcohol content accurately in

seconds! The measuring procedure isn't difficult, just clean the alcohol refractometer before using & once

the distilled sample liquid is in place make sure that no air bubbles are appearing.

This refractometer can be used for the still raw or before and Self-after manufactured finished product just

as long as the sample to be tested is distilled. RHW-25Brix ATC is a metal device that provides you with

fast & accurate results. It's dual-scale provides you the direct reading of the alcohol as well as brix

measurements.

FULLY EQUIPPED with ATC that automatically adjust itself to correct temperature discrepancies during

use. Refractive index is very temperature dependent, it is important to use a refractometer with automatic

temperature compensation to give you the most accurate measurement in any type of environment

temperature. Capable of measuring with high accuracy and provides precise results and is equipped with

vivid and sharp reticle chart for easy and comfortable reading. It uses ambient light only and no batteries

are needed. Made by experienced craftsmen and are unlikely to break down!

​
