Baby Stroller ASTM F963 Toys Dynamic Strength Tester EN-71 Toy Dynamic Strength Testing Equipment
Toy Dynamic strength Tester for Wheeled Ride-on Toys Testing Equipment
Application
This instrument is mainly used for test the proformance of rides at the speed of toys 2m / s to strike 50x50mm obstruct. The machine simulation children riding tricycle operation state, put on the load on the sample and use 2 m/s speed to strike a piece of 50 x50mm obstacles block.After testing to check sample structure and performance if are in good condition or not
Test Principle
A load is secured to the toy, and articulated arms with the elbow joints in a downward position are attached to the steering wheel or handlebars if the toy is so equipped. The toy is driven three times into a non-resilient step.
Features
1.PLC touch screen control system equipped which is in English.
2.Testing frame in stainless steel materials is durable with long service life.
3.Available for testing various children ride-on toys, such as children tricycle, toy bikes, scooters, etc.
4.Each parts of whole tester mark the number for installation easily.
5.Human-made operational system which is easy for use.
Techncial parameters
|
Conveyor belt speed |
2m/s |
|
Dimensions |
153x450x156cm |
|
Test channel width |
90cm |
|
Obstacle block size |
50*50cm |
| Weight | 900kg |
| Standards |
EN71-1-2011-8.22 ASTM F963, clause 8.20 ISO 8142-1-2012-5.27 GB 6675-2014-5.24.4 |
| Accessories |

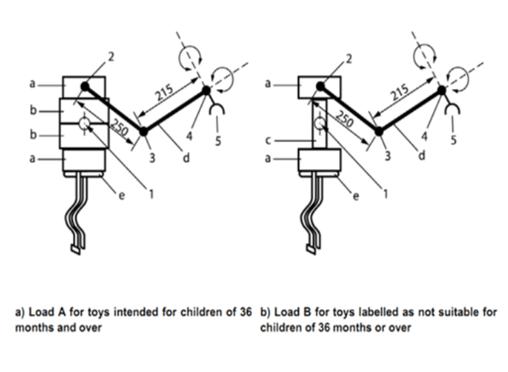

Load A Load B |
Load A Load B
