SATRA TM 21 EN 19956 Durable Footwear Testing Equipment Heel Fatigue Tester

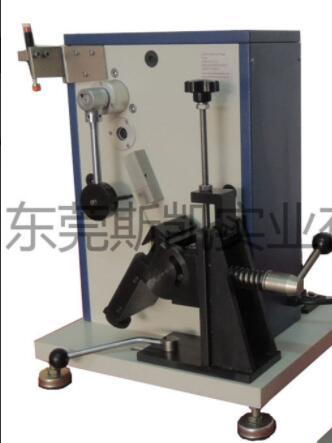

Footwear Testing Equipment SATRA TM21 EN 19956 Heel Fatigue Tester
Use
Heel Impact testeris used to determine impact strength of heels of ladies' shoe to continuous impact. It is specialized testing heel resistant continuous impact number for female high-heeled shoe, middle-heeled shoes, under a certain energy and frequency, dish blade of the machine continuously beat heel until fatigue breakdown of heels in order to understand
the afford ability index of heel to continuous force, and to determine the durability and quality of heel.
This test is used to determine the resistance of medium and high heels of ladies’ shoes under repeated small impacts to the heel tip.
Specfication
| Impact capacity | 0.68J /blow |
| Impact frequency | 60cpm |
| Impact angle | 90degree |
| Counter | LCD digital display 0 - 999999 ( can be adjustment) |
| Dimension | 60 x 40 x 65cm |
| Weight | 80kg |
| Standards |
ISO 19956 ,SATRA PM21, BS-5131 4.9 |
What is Satra testing?
SATRA is an independent research and testing organisation established in the UK in 1919. ... SATRA has its own chemicals analysis laboratory for testing restricted substances in accordance with UK and European REACH, and US chemicals regulations for which it is CPSC-accredited.
