Environmental Test Chamber Sand And Dust Test Chamber Digital Temperature Display
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
10 working days
Brand:
SKYLINE
Product Description

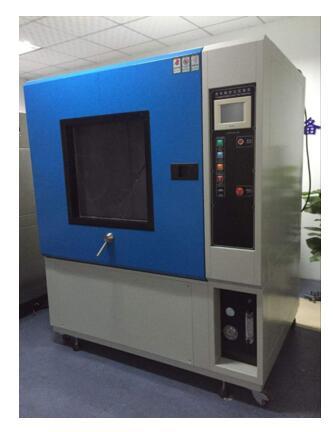

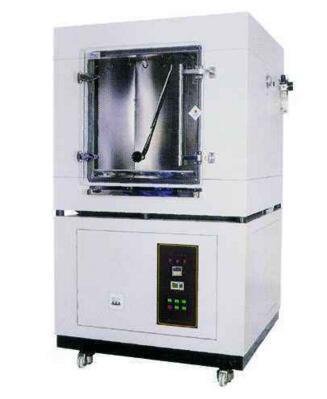

SL-IPX5X6 Sand And Dust Test Chamber
Main application of environmental test chamber
The sand and dust test chamber is used to test the sealing performance of the product shells. It is mainly used for the test of two grades of IP5X and IPX6X for enclosure protection grade. Through the simulation of sand and dust weather, outdoor lamps, auto parts, outdoor cabinets, power meters and other product are tested.
Main Technical Parameters
| Model | Inner dimension | Outer dimension | Power |
| SL-IP56X-125L | 500×500×500mm | 950×750×1500mm | 1.0KW |
| SL-IP56X-500L | 800×800×800mm | 1250×1020×1770mm | 1.5KW |
| SL-IP56X-1000L | 1000×1000×1000mm | 1450×1220×1970mm | 1.5KW |
| SL-IP56X-1500L | 1000×1500×1000mm | 1450×1720×1970mm | 2.0KW |
| Time setting range | 0-999 Adjustable | ||
| Temperature setting range | RT+10~70℃ (Please declare in order) | ||
| Test dust | French chalk | ||
| Dust dosage | 2-4Kg/m³ | ||
| Dust fall mode | Dusting in freedom | ||
| Vacuum degree | 0-10.0Kpa Adjustable | ||
| Protector | Leakage protection and short circuit protection | ||
| Supply voltage | 220V |
Notes:other sizes can be customized according to requirements.
