DIN EN 13759 Cami Infant Dummy 110kg For Testing Upholstered Furniture
Price:
Negoitable
MOQ:
1 unit
Delivery Time:
15 working days
Brand:
SKYLINE
Product Description
Dummy for Testing Upholstered Furniture
The test dummy is made of a smooth, rigid material.
The sections are connected together via a hinging mechanism that does not inhibit the movement of the dummy sections relative to each other.

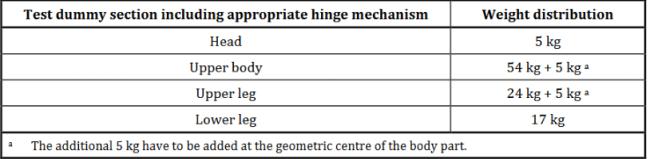

The total mass of the dummy including any hinge mechanisms is 110 kg.The weight distribution of the sections of the test dummy shall be in accordance with Table 1:

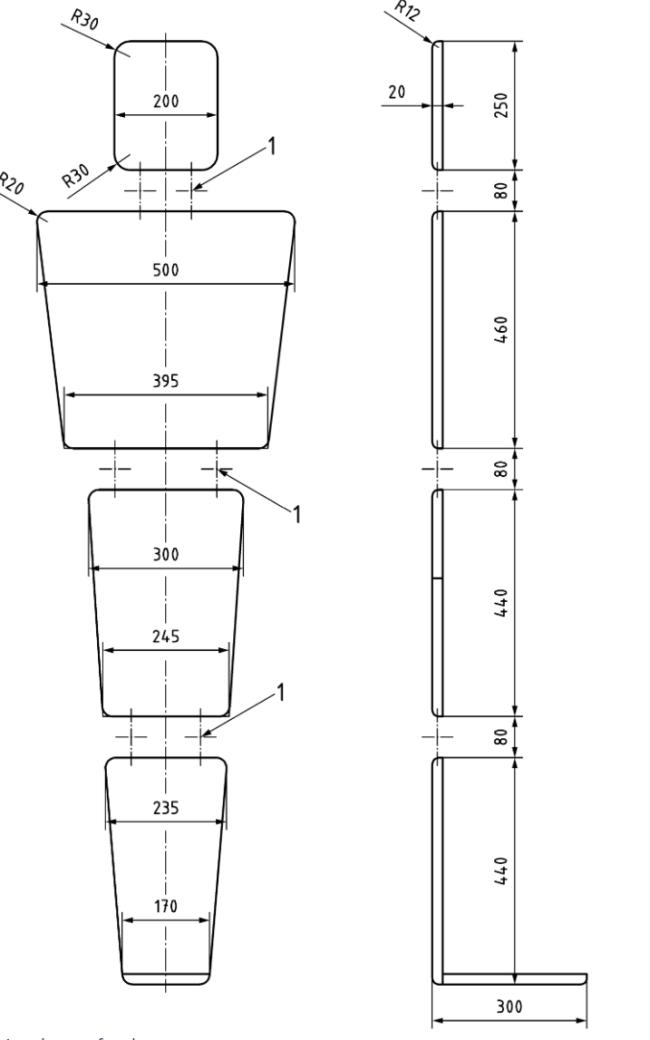

For the dummy shown in Figure 1, all dimensions shall be subject to a ±2 mm tolerance. All edges and corners in contact with the furniture shall have a 12 mm radius.
Test standards
EN 1725 / clause 5.2
DIN EN 13759
