High Performance Air Suspension Crimping Machine For Mercedes BMW Audi Porsche
High Performance Hydraulic Crimping Machine , Hydraulic Hose Pipe Crimping Machine
Quick Detailed

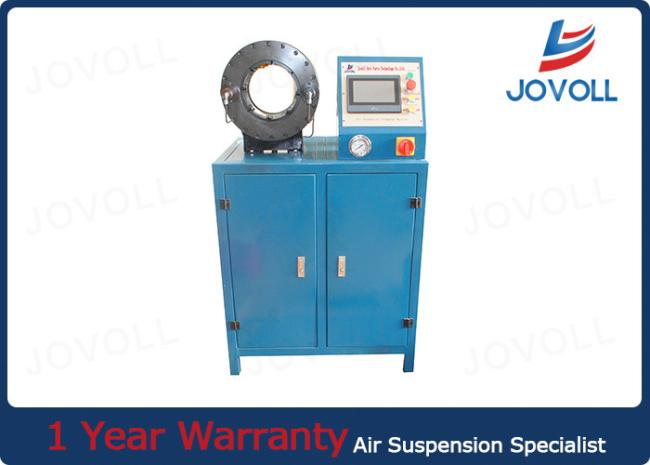

Air Suspension Spring Hydraulic Crimping Machine For Mercedes BMW Audi Porsche
| Crimping force: 100T Max opening: 175mm Crimping range: 20mm-175mm Acurracy: 0.05mm Standard dies sets: 10 (size customized) Voltage: 220V / 380V Power: 4kw System pressure: 30Mpa Operate mode: auto, manual, pedal Weight:300-330kg Dimension: L750*W700*H1300mm crimping way : Longitudinal withhold |
Fit For Euro car: Mercedes:W164.W220.W221.W211.W212.W219 BMW: X5 E53. E70. X6 E65. E39. F01.F02 Land Rover vogue: L322, sport Discovery 3&4 Audi: A6 C5.A6C6.Q7.A8 |
Introduction
This crimping machine is specially design for repair air suspension(AUDI, BMW, MERCEDES-BENZ, LAND ROVER, PORSCHE and etc.) , connect the rubber parts, plastic parts, metal rings through the hydraulic power. With this machine, You can fix air suspension leak easily.
How to Crimp
- Install the mold,
- Turn on the machine, set the crimping pressure and time,
- Put the prepared parts into crimping machine, press Buckle button untill it finish crimp.
- Press Open mold button and take away the finished part.
- Press Stop motor and turn off the machine.
- Pressure setting reference:
- If the thickness of the rubber is 3mm, the realtime pressure Please use 0.8MPa-0.85MPa
- If the thickness of the rubber is 2mm-2. 5mm, the realtime pressure Please use 0.6MPa-0.7Mpa.
Welcome to send us your inquiry for more details!!
