ISO-Certified SMT PCB Assembly Leveraging The Latest Surface Mount Through-Hole And Mixed Technologies
ISO-Certified SMT PCB Assembly Leveraging the Latest Surface Mount, Through-Hole, and Mixed Technologies
Detail Specifications:
| Layers | 2 |
| Material | FR-4 |
| Board Thickness | 1.6mm |
| Copper Thickness | 1oz |
| Surface Treatment | HASL LF |
| Soldmask & Silkscreen | Green & White |
| Quality Standard | IPC Class 2, 100% E-testing |
| Certificates | TS16949, ISO9001, UL, RoHS |
What KAZ Circuit can do for you:
- PCB & PCBA Design
- PCB manufacturing (prototype, small to medium, mass production)
- Components Sourcing
- PCB Assembly/SMT/DIP
To get a full quotation of the PCB/PCBA, pls provide the information as below:
- Gerber File, with detail specification of the PCB
- BOM List (Better with excel fomart)
- Photoes of the PCBA (If you have done this PCBA before)
Manufacturer Capacity:
| Capacity | Double Sided: 12000 sq.m / month Multilayers: 8000sq.m / month |
| Min Line Width/Gap | 4/4 mil (1mil=0.0254mm) |
| Board Thickness | 0.3~4.0mm |
| Layers | 1~20 layers |
| Material | FR-4, Aluminum, PI |
| Copper Thickness | 0.5~4oz |
| Material Tg | Tg140~Tg170 |
| Max PCB Size | 600*1200mm |
| Min Hole Size | 0.2mm (+/- 0.025) |
| Surface Treatment | HASL, ENIG, OSP |
SMT Capacity
In the world of electronics manufacturing, quality and reliability are paramount. That's why our ISO-certified SMT PCB assembly facility leverages the latest surface mount, through-hole, and mixed-technology solutions to deliver unparalleled results.
Our state-of-the-art production lines are equipped with advanced automated and semi-automated equipment, allowing us to achieve unprecedented levels of precision and efficiency. From sophisticated reflow soldering techniques to precision selective soldering, we employ the industry's most innovative technologies to ensure the flawless assembly of even the most complex boards.
But it's our commitment to quality that truly sets us apart. Our rigorous ISO certification processes and in-house quality control measures guarantee that every PCB assembly meets the most stringent industry standards. Whether you require high-volume production or customized prototyping, you can trust our team to handle your project with the utmost care and attention to detail.
Contact us today to discover how our ISO-certified SMT PCB assembly services can elevate your next electronic project.

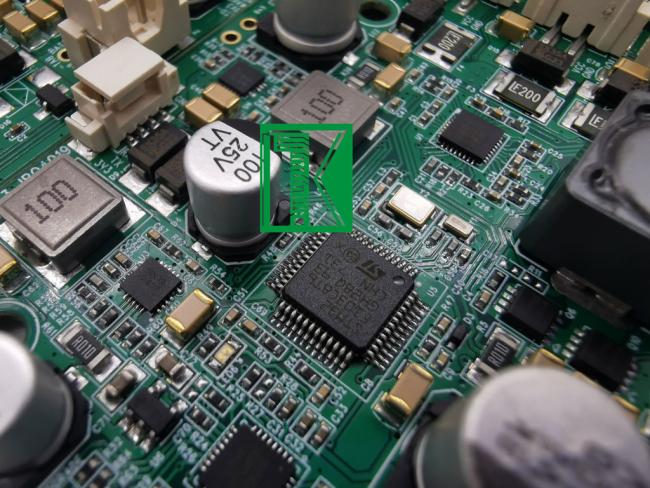

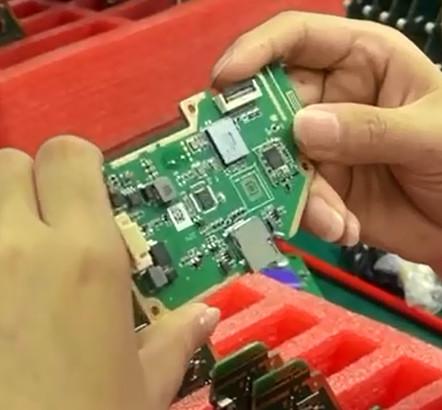

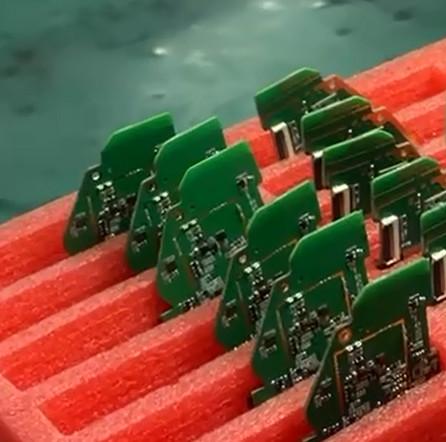

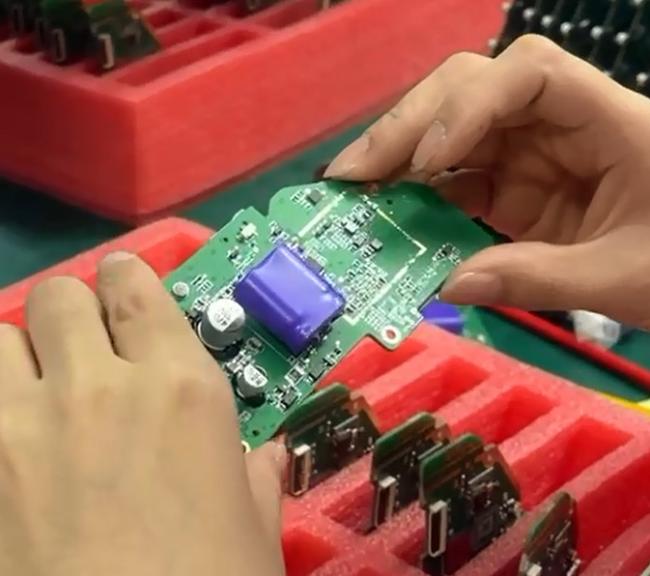

Photoes of this ISO-Certified SMT PCB Assembly Leveraging the Latest Surface Mount, Through-Hole, and Mixed Technologies
